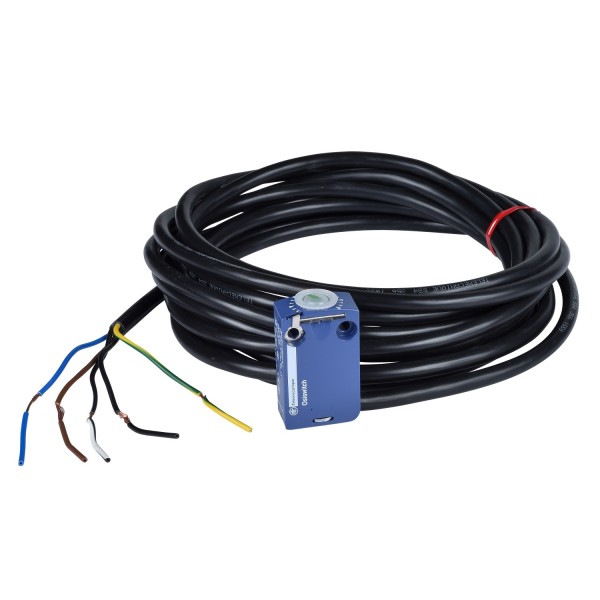

limit switch body ZCMD - 1NC+1NO - silver - snap action - connection - 1 m

Ülevaaded: 0

Tootekood: ZCMD21L1

Quick Overview

Saadavus: Tellimisel

25,77 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch body
device short name
ZCMD
design
Miniature
body type
Fixed
associated head
ZCE24
ZCE08
ZCE21
ZCE07
ZCEF0
ZCE02
ZCE13
ZCE62
ZCE65
ZCE64
ZCE01
ZCE29
ZCE09
ZCE06
ZCEG1
ZCE66
ZCE14
ZCE10
ZCEF2
ZCE63
ZCE28
ZCE27
ZCE11
ZCE67
body material
Zamak
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Snap action
Complementary
product compatibility
XCMD
electrical connection
Removable cable
cable length
1 m
cable composition
5 x 0.75 mm²
wire insulation material
PvR
contacts insulation form
Zb
contacts material
Silver plated contacts
positive opening
With
minimum actuation speed
0.01 m/min
[Ui] rated insulation voltage
300 V (pollution degree 3) conforming to UL 508
400 V (pollution degree 3) conforming to IEC 60947-5-1
300 V (pollution degree 3) conforming to CSA C22.2 No 14
maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
4 kV IEC 60664
4 kV IEC 60947-1
short-circuit protection
6 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 120 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
30 mm
height
50 mm
depth
16 mm
net weight
0.065 kg
Environment
ambient air temperature for storage
-40…70 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
