Details
Characteristics
| range of product | OsiSense XC | |
|---|---|---|
| series name | Standard format | |

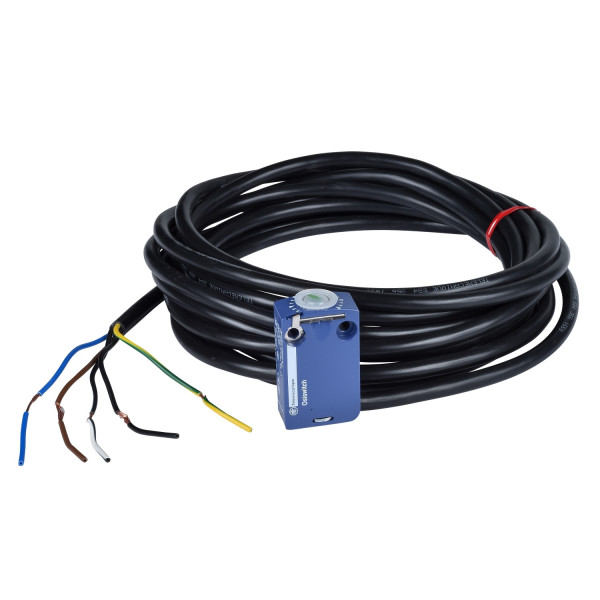

| product or component type | Limit switch body | |
| device short name | ZCMD | |
| design | Miniature | |
| body type | Fixed | |
| associated head | ZCE63ZCE21ZCE01ZCEF0ZCE13ZCE14ZCE08ZCE07ZCE28ZCE27ZCE06ZCE62ZCE64ZCE65ZCE66ZCE11ZCEG1ZCE02ZCE24ZCE29ZCE67ZCEF2ZCE10ZCE09 | |
| body material | Zamak | |
| number of poles | 3 | |
| contacts type and composition | 2 NC + 1 NO | |
| contact operation | Snap action |
| product compatibility | XCMD | |
|---|---|---|
| electrical connection | Removable cable | |
| cable length | 1 m | |
| cable composition | 7 x 0.5 mm² | |
| wire insulation material | PvR | |
| contacts insulation form | Zb | |
| contacts material | Silver plated contacts | |
| positive opening | With | |
| minimum actuation speed | 0.01 m/min | |
| [Ui] rated insulation voltage | 300 V (pollution degree 3) conforming to UL 508400 V (pollution degree 3) conforming to IEC 60947-5-1300 V (pollution degree 3) conforming to CSA C22.2 No 14 | |
| maximum resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 | |
| [Uimp] rated impulse withstand voltage | IEC 60664 4 kVIEC 60947-1 4 kV | |
| short-circuit protection | 6 A cartridge fuse, type gG | |
| electrical durability | 5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| width | 30 mm | |
| height | 50 mm | |
| depth | 16 mm | |
| net weight | 0.065 kg |
| ambient air temperature for storage | -40…70 °C |
|---|
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
