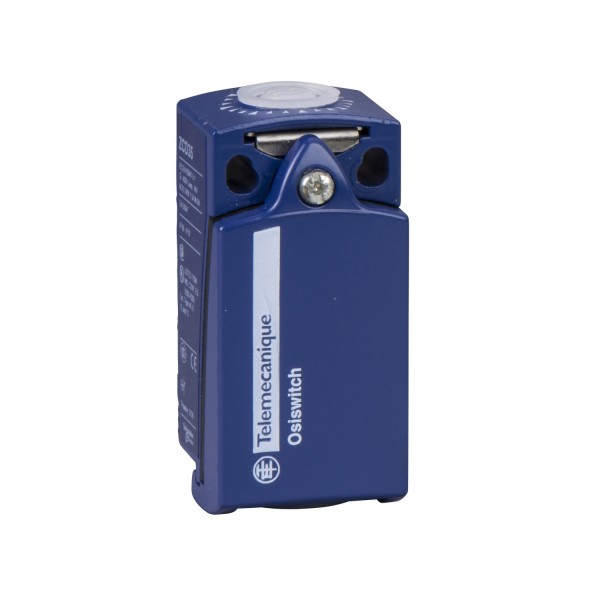

limit switch body ZCP - compact - 1NC+1NO - slow-break

Ülevaaded: 0

Tootekood: ZCP66

Quick Overview

Saadavus: Tellimisel

69,99 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard compact
product or component type
Limit switch body
device short name
ZCP
design
Compact
body type
Fixed
associated head
ZCE06
ZCE29
ZCE01
ZCE67
ZCE05
ZCE10
ZCE63
ZCE13
ZCE02
ZCEH0
ZCE27
ZCE28
ZCE65
ZCE62
ZCE64
ZCE14
ZCE07
ZCE66
ZCE24
ZCE21
ZCEH2
ZCE11
ZCE08
body material
Zamak
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Slow-break, make before break
Complementary
associated connection component
ZCDEP20
ZCDEG11
ZCDEN12
ZCDEP16
ZCDEF12
ZCDEG13
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
contacts insulation form
Zb
contacts material
Gold plated contacts
positive opening
With
minimum actuation speed
6 m/s
contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
IEC 60664 6 kV
IEC 60947-1 6 kV
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 120 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 13 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 9 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
31 mm
height
65 mm
depth
30 mm
Environment
product compatibility
XCKP
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
