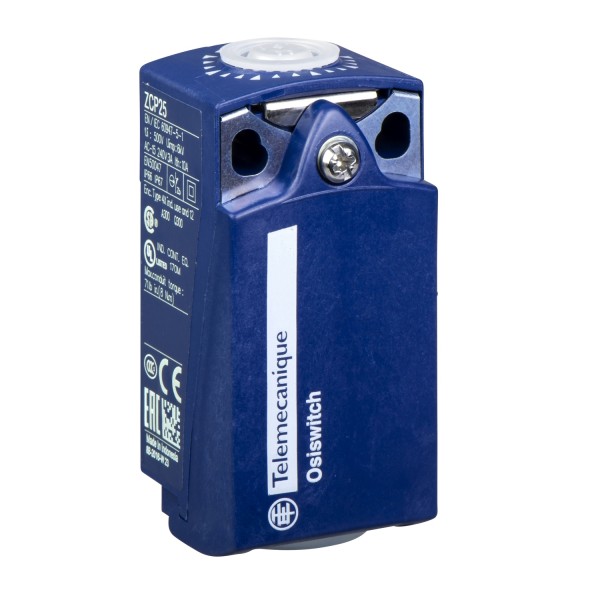

limit switch body ZCP - compact - 1NC+1NO - slow-break

Ülevaaded: 0

Tootekood: ZCP25

Quick Overview

Saadavus: Tellimisel

12,11 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard compact
product or component type
Limit switch body
device short name
ZCP
design
Compact
body type
Fixed
associated head
ZCE64
ZCE62
ZCE27
ZCE28
ZCE65
ZCE11
ZCE14
ZCE10
ZCE67
ZCE06
ZCE24
ZCE29
ZCE63
ZCE01
ZCE05
ZCEH0
ZCE02
ZCE13
ZCE08
ZCE07
ZCE21
ZCEH2
ZCE66
body material
Plastic
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Slow-break, break before make
Complementary
associated connection component
ZCPEF12
ZCPEP20
ZCPEG13
ZCPEG11
ZCPEP16
ZCPEN12
electrical connection
Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
contacts insulation form
Zb
contacts material
Silver plated contacts
positive opening
With
minimum actuation speed
6 m/s
contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1,5 A EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0,1 A EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 VUL 508
500 V 3)IEC 60947-1
300 VCSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse gG
electrical durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
width
31 mm
height
65 mm
depth
30 mm
net weight
0,07 kg
Environment
product compatibility
XCKP
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
