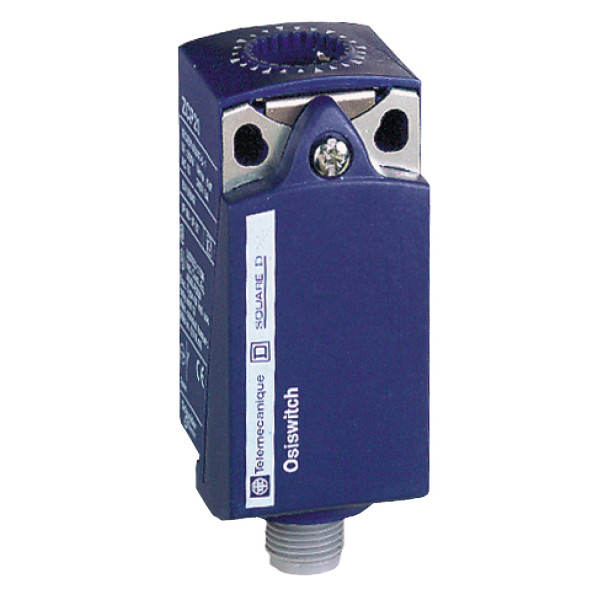

limit switch body ZCP - compact - 2NC - slow-break - M12 4P

Ülevaaded: 0

Tootekood: ZCP27M12

Quick Overview

Saadavus: Tellimisel

21,92 € (ilma KM-ta)

Details

Main
range of product
Osiswitch
series name
Universal
product or component type
Limit switch body
device short name
ZCP
design
Compact
body type
Fixed
associated head
ZCE13
ZCEH2
ZCE24
ZCE08
ZCE07
ZCE63
ZCE10
ZCE29
ZCE02
ZCE67
ZCE05
ZCE65
ZCE01
ZCE11
ZCE27
ZCE28
ZCE64
ZCE66
ZCE06
ZCE21
ZCE14
ZCEH0
ZCE62
body material
Plastic
number of poles
2
contacts type and composition
2 NC
contact operation
Slow-break, simultaneous
Complementary
electrical connection
Male connector M12, 4 pins
contacts insulation form
Zb
contacts material
Silver plated contacts
positive opening
With
minimum actuation speed
0.6 m/min
contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
IEC 60664 6 kV
IEC 60947-1 6 kV
short-circuit protection
10 A cartridge fuse, type gG
[Ie] rated operational current
3 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
3 A
electrical durability
5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
31 mm
height
65 mm
depth
30 mm
net weight
0.07 kg
Environment
product compatibility
XCKP
ambient air temperature for storage
-40…70 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
