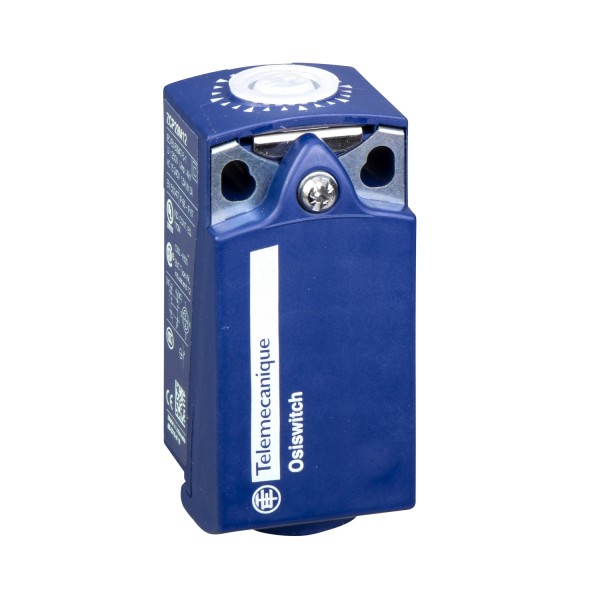

limit switch body ZCP - compact - 2NC - snap action - M12 4P

Product was successfully added to your shopping cart.

limit switch body ZCP - compact - 2NC - snap action - M12 4P

Tootekood: ZCP29M12

Quick Overview

Saadavus: Tellimisel

34,49 € (ilma KM-ta)

Qty:

Details

Main
range of product	Osiswitch
series name	Universal
product or component type	Limit switch body
device short name	ZCP
design	Compact
body type	Fixed
associated head	ZCE13 ZCE09 ZCE62 ZCEH0 ZCE10 ZCE11 ZCE27 ZCE28 ZCE24 ZCE63 ZCE64 ZCE65 ZCE21 ZCE14 ZCEH2 ZCE06 ZCE05 ZCE29 ZCE67 ZCE02 ZCE08 ZCE66 ZCE07
body material	Plastic
number of poles	2
contacts type and composition	2 NC
contact operation	Snap action

Complementary
electrical connection	Male connector M12, 4 pins
contacts insulation form	Zb
contacts material	Silver plated contacts
positive opening	With
minimum actuation speed	0.01 m/min
contact code designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 V conforming to UL 508
maximum resistance across terminals	25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	IEC 60947-1 6 kV
short-circuit protection	10 A cartridge fuse, type gG
[Ie] rated operational current	3 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A 0.27 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	3 A
electrical durability	5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width	31 mm
height	65 mm
depth	30 mm
net weight	0.07 kg

Environment
product compatibility	XCKD
ambient air temperature for storage	-40…70 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
