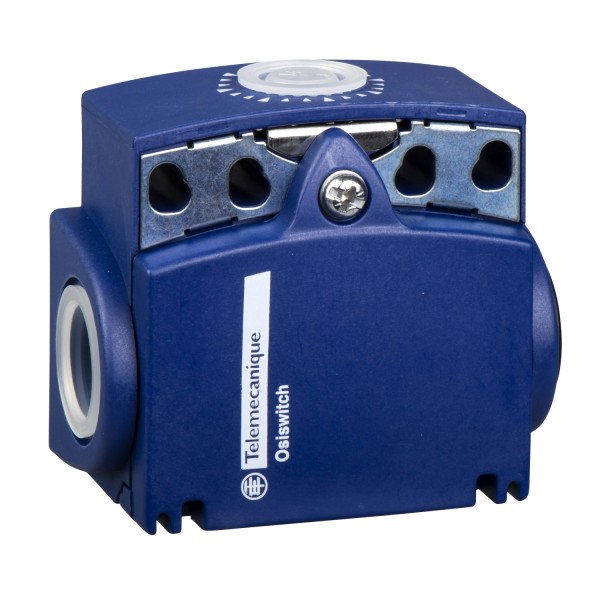

limit switch body ZCT - compact - 1NC+1NO - snap action - Pg11

Ülevaaded: 0

Tootekood: ZCT21G11

Quick Overview

Saadavus: Tellimisel

13,79 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard compact
product or component type
Limit switch body
device short name
ZCT
design
Compact
body type
Fixed
associated head
ZCE09
ZCEH2
ZCE06
ZCE24
ZCE21
ZCE66
ZCE02
ZCE62
ZCE27
ZCE11
ZCE28
ZCE01
ZCE05
ZCE14
ZCE65
ZCE64
ZCE07
ZCEH0
ZCE13
ZCE29
ZCE63
ZCE08
ZCE67
ZCE10
body material
Plastic
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Snap action
Complementary
electrical connection
Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
cable entry
2 entries tapped for Pg 11 cable gland 4…8 mm
contacts insulation form
Zb
contacts material
Silver plated contacts
positive opening
With
minimum actuation speed
0,01 m/s
contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1,5 A EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0,1 A EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 VUL 508
500 V 3)IEC 60947-1
300 VCSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse gG
electrical durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
width
58 mm
height
51 mm
depth
30 mm
net weight
0,13 kg
Environment
product compatibility
XCKT
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
