  • limit switch body ZCT - compact - 2NC - slow-break - 1/2"NPT

Product was successfully added to your shopping cart.

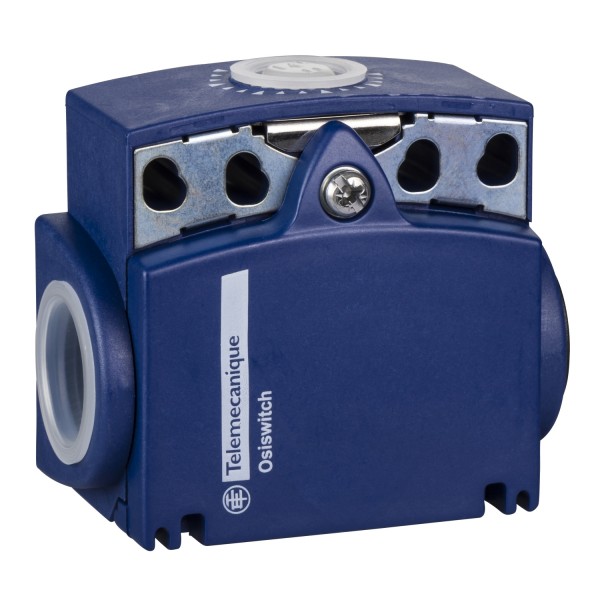

limit switch body ZCT - compact - 2NC - slow-break - 1/2"NPT

Ülevaaded: 0

Tootekood: ZCT27N12

Quick Overview

Saadavus: Tellimisel

55,77 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard compact
product or component type
Limit switch body
device short name
ZCT
design
Compact
body type
Fixed
associated head
ZCE27
ZCE28
ZCEH2
ZCE14
ZCE66
ZCE06
ZCE63
ZCEH0
ZCE11
ZCE08
ZCE62
ZCE29
ZCE65
ZCE13
ZCE02
ZCE05
ZCE10
ZCE64
ZCE01
ZCE07
ZCE24
ZCE21
ZCE67
body material
Plastic
number of poles
2
contacts type and composition
2 NC
contact operation
Slow-break, simultaneous
Complementary
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
cable entry
2 entries tapped for 1/2" NPT adaptor, cable outer diameter: 4…8 mm
contacts insulation form
Zb
contacts material
Silver plated contacts
positive opening
With
minimum actuation speed
6 m/s
contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
IEC 60664 6 kV
IEC 60947-1 6 kV
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 120 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 13 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 9 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
58 mm
height
51 mm
depth
30 mm
net weight
0.085 kg
Environment
product compatibility
XCKT
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
