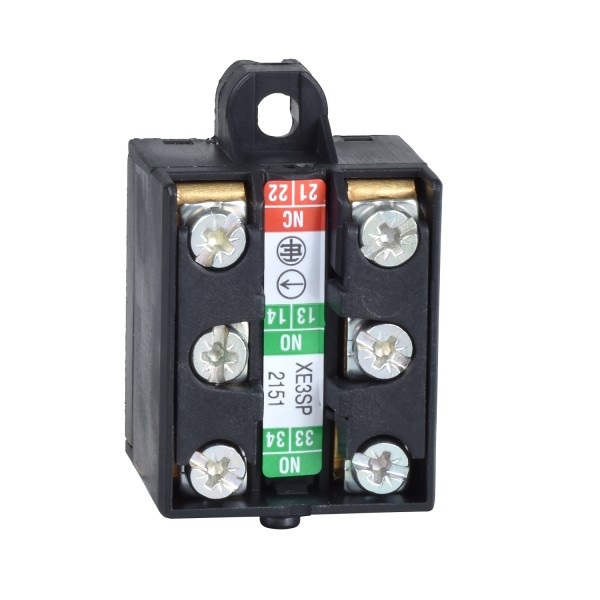

limit switch contact block - 1NC+2NO - slow-break, break before make

Tootekood: XE3NP2151

Quick Overview

Saadavus: Tellimisel

17,62 € (ilma KM-ta)

Qty:

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch contact block
device short name	XE3N
associated body	ZCKLD35 ZCKMD35 ZCKJD35 ZCKSD35 ZCD35 ZCP35
number of poles	3
contacts type and composition	2 NO + 1 NC
contact operation	Slow-break, break before make

Complementary
product compatibility	XCKL XCKJ XCKM XCKP XCKD XCKS
electrical connection	Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²
contacts insulation form	Zb
contacts material	Silver plated contacts
positive opening	With
minimum actuation speed	6 m/min
contact code designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A, Ithe = 6 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A
maximum resistance across terminals	25 mOhm conforming to IEC 60255-7 category 3
[Ui] rated insulation voltage	300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 400 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage	4 kV IEC 60664 4 kV IEC 60947-1
short-circuit protection	6 A cartridge fuse, type gG
electrical durability	5000000 cycles, DC-13 120 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13 24 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13 48 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
