limit switch contact block XCKZ - 1 C/O snap action - silver plated

Product was successfully added to your shopping cart.

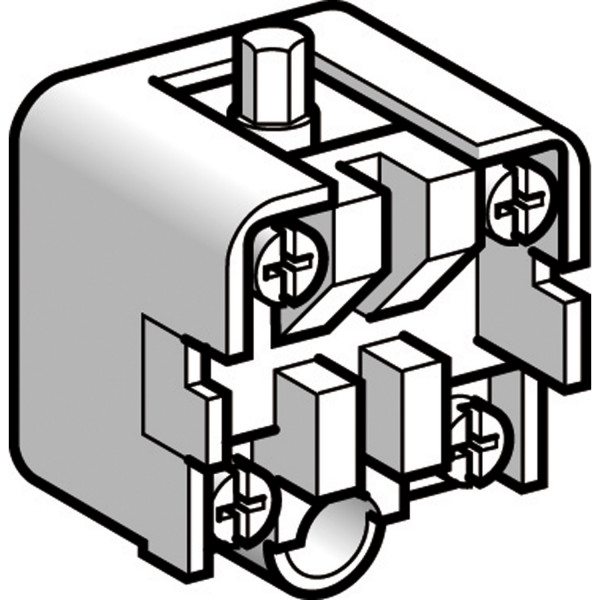

limit switch contact block XCKZ - 1 C/O snap action - silver plated

Tootekood: XCKZ01

Quick Overview

Saadavus: Tellimisel

19,82 € (ilma KM-ta)

Qty:

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch contact block
device short name	XCKZ
associated body	ZC2JC1 ZC2JC15 ZC2JC16
number of poles	1
contact operation	Snap action
contacts type and composition	1 C/O

Complementary
product compatibility	XC2J
electrical connection	Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Za
contacts material	Silver plated contacts
positive opening	Without
minimum actuation speed	0,01 mm/s
contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0,27 A EN/IEC 60947-5-1 appendix A
maximum resistance across terminals	25 mOhm IEC 60255-7 category 3
[Ui] rated insulation voltage	500 VIEC 60947-5-1 300 VCSA C22.2 No 14
short-circuit protection	10 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
