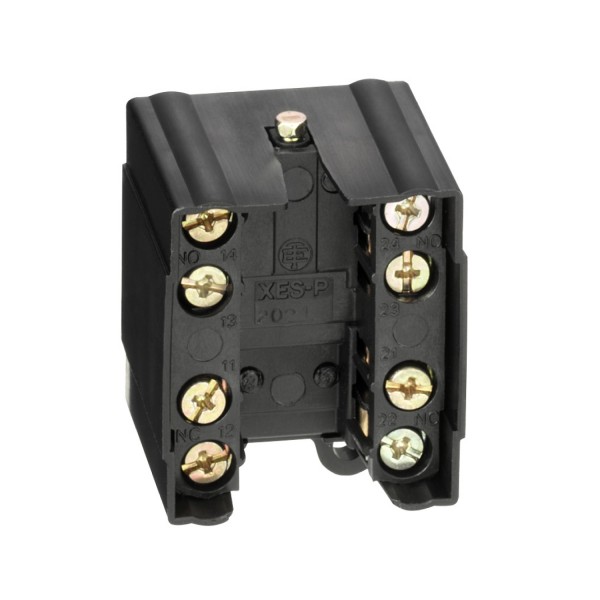

limit switch contact block XESP - 2 C/O snap action, staggered - silver plated

Ülevaaded: 0

Tootekood: XESP1031

Quick Overview

Saadavus: Tellimisel

25,53 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch contact block
device short name
XESP
associated body
ZC2JC46
ZC2JC4
number of poles
2
contact operation
Snap action, staggered
contacts type and composition
2 C/O
Complementary
product compatibility
XC2J
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
contacts insulation form
Za
contacts material
Silver plated contacts
positive opening
Without
minimum actuation speed
0.01 mm/s
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Ui] rated insulation voltage
500 V conforming to IEC 60947-5-1
300 V conforming to CSA C22.2 No 14
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
