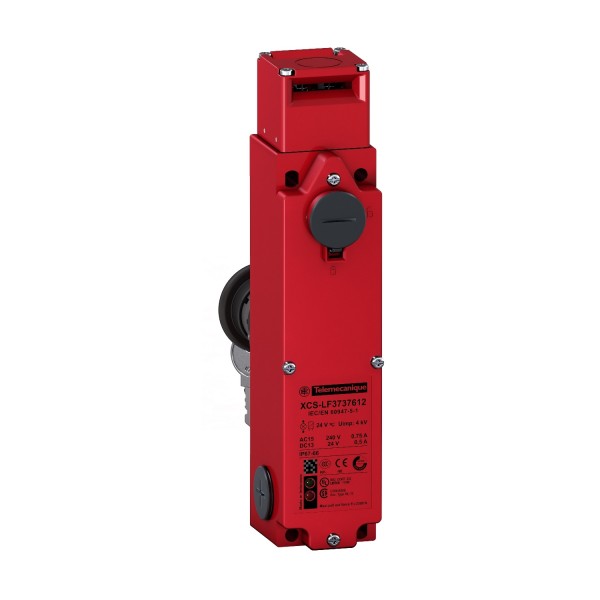

Limit switch - key operated turret head

Details

Complementary
positive opening	With NC contact
supply voltage type	AC/DC
supply frequency	50/60 Hz
load factor	1
power consumption in VA	10 VA inrush 10 VA sealed
signalling circuit consumption	7 mA
mechanical durability	1000000 cycles
maximum load current	<= 15 A
[Uimp] rated impulse withstand voltage	6 kV EN/IEC 60947-5-1
protection type	Overvoltage protection signalling circuit
maximum operating rate	10 cyc/mn for maximum durability
safety level	Can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Environment
protective treatment	TC
electrical shock protection class	Class I EN/IEC 60536

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
