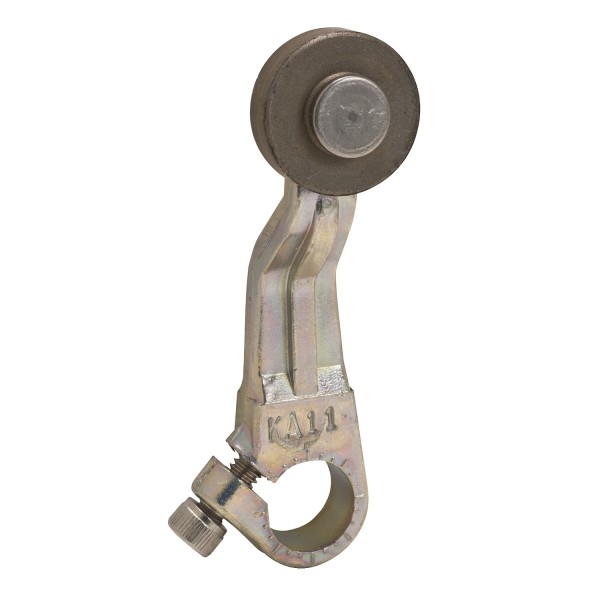

LIMIT SWITCH LEVER ARM AW+C +OPTIONS

Tootekood: 9007KA12

Quick Overview

Saadavus: Tellimisel

10,46 € (ilma KM-ta)

Qty:

Main
range of product	9007
series name	Heavy duty
product or component type	Limit switch lever
device short name	9007C
associated head	9007T5 9007N 9007T10 9007C 9007B 9007A
associated complete product	9007AW 9007C
movement of operating head	Rotary
type of operator	Cast zinc spring return roller lever length: 50.80 mm - offset: 0.44 in -
type of roller	1 steel outside roller diameter: 19.05 mm - width: 16.00 mm
type of approach	Lateral approach
positive opening	Without

Complementary
switch actuation	By 30° cam
net weight	0.05 kg

Environment
ambient air temperature for operation	-29…85 °C
ambient air temperature for storage	-29…85 °C
environmental characteristic	Standard environment

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Not applicable, out of EU RoHS legal scope
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
