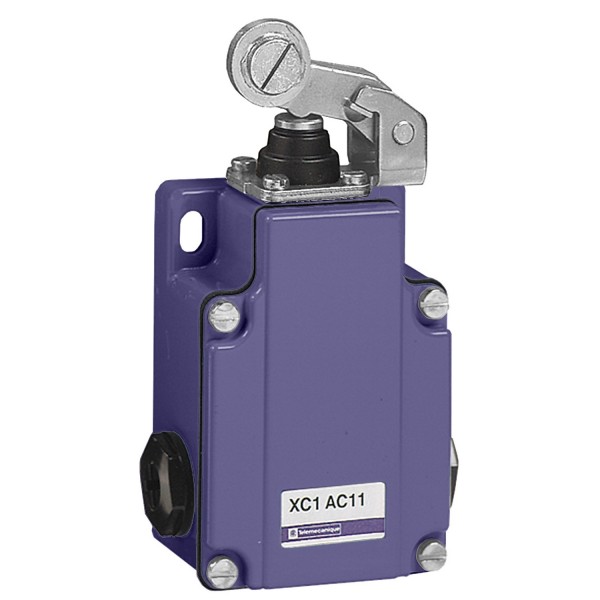

limit switch XC1AC - roller lever - 1C/O

OsiSense XC

Special format

Limit switch

Materials handling

XC1AC

-

Fixed

Plunger head

Metal

By the body

Linear

Spring return roller lever metal -

By 30° cam

Lateral approach, 2 directions

Screw-clamp terminals 1 x 0.5...1 x 2.5 mm²

3 entries tapped for Pg 13.5 cable gland 9…12 mm

1

1 C/O

Slow-break

1

Without

23 N

Za

0,5 m/s

10 A

500 V ACIEC 60947-5-1
500 V ACNF C 20-040
600 V DCIEC 60947-5-1
600 V DCNF C 20-040
600 V ACCSA C22.2 No 14
600 V DCCSA C22.2 No 14

8 mOhm

10 A cartridge fuse gG

1000000 cycles, AC-15 50/60 Hz, inductive, 110 V, 900 VA 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15 50/60 Hz, inductive, 230 V, 1900 VA 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15 50/60 Hz, inductive, 48 V, 450 VA 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, inductive, 110 V, 100 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, inductive, 230 V, 95 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, inductive, 48 V, 100 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
3000000 cycles, AC-15 50/60 Hz, inductive, 110 V, 350 VA 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
3000000 cycles, AC-15 50/60 Hz, inductive, 230 V, 430 VA 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
3000000 cycles, AC-15 50/60 Hz, inductive, 48 V, 170 VA 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
3000000 cycles, DC-13, inductive, 110 V, 40 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
3000000 cycles, DC-13, inductive, 230 V, 33 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
3000000 cycles, DC-13, inductive, 48 V, 35 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C

10000000 cycles

77 mm

130 mm

44 mm

0,53 kg

(13-14)NO
(11-12)NC

95 gn 11 ms IEC 60068-2-27

9 gn 10…500 Hz)IEC 60068-2-6

IP65 IEC 60529
IP65 NF C 20-010

Class I IEC 61140
Class I NF C 20-030

-25…70 °C

-40…70 °C

TC

Any position

CSA

IEC 60947-5-1
VDE 0660-200
IEC 60337-1
EN 60947-5-1
CSA C22.2 No 14

Ei rakendu, ei jää EL-i RoHS seadustega määratud piiridesse

18 months
