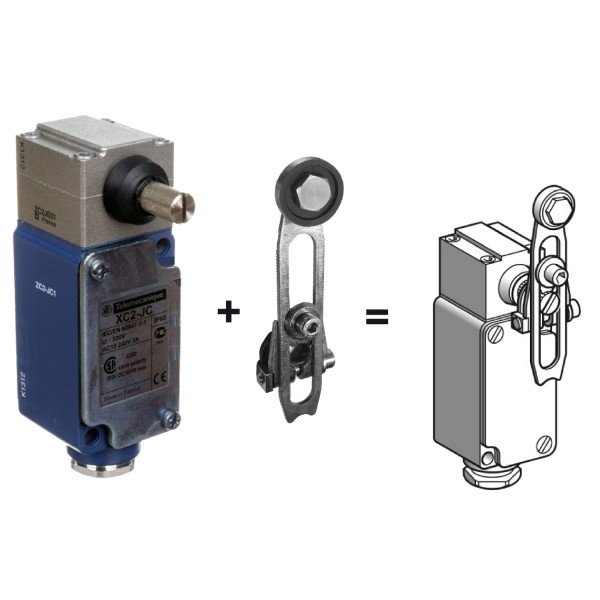

limit switch XC2-J - roller lever - 1 C/O

Ülevaaded: 0

Tootekood: XC2JC10531

Quick Overview

Saadavus: Tellimisel

227,22 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Special format
product or component type
Limit switch
product specific application
For severe applications
device short name
XC2J
body type
Fixed
head type
Rotary head
material
Metal
movement of operating head
Rotary
type of operator
Roller lever thermoplastic variable length
switch actuation
By 30° cam
type of approach
Lateral approach, 1 direction programmable
number of poles
1
contact operation
Snap action
minimum torque for tripping
0.2 N.m
maximum actuation speed
0.5 m/s
repeat accuracy
0.01 mm with 1 million operating cycles
Complementary
fixing mode
By the body
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
cable entry
1 entry incorporating cable gland, cable outer diameter: 6…13.5 mm
contacts insulation form
Za
contacts material
Silver plated contacts
positive opening
Without
minimum actuation speed
0.001 m/min
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage
500 V conforming to IEC 60947-5-1
500 V conforming to NF C 20-040 group C
300 V conforming to CSA C22.2 No 14
maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
25 MOhm conforming to NF C 93-050 method A
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13, 120 V, 4 W, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability
30000000 cycles
width
40 mm
height
121 mm
depth
41 mm
net weight
0.555 kg
terminals description ISO n°1
(13-14-11-12)OF
Environment
shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
vibration resistance
10 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
IP657 conforming to NF C 20-010
IK degree of protection
IK08
electrical shock protection class
Class I conforming to IEC 60536
Class I conforming to NF C 20-030
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
protective treatment
TC
product certifications
NEMKO
CSA
DEMKO
standards
EN/IEC 60947-5-1
CSA C22.2 No 14
IEC 60337-1
VDE 0660-200
UL 508
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
