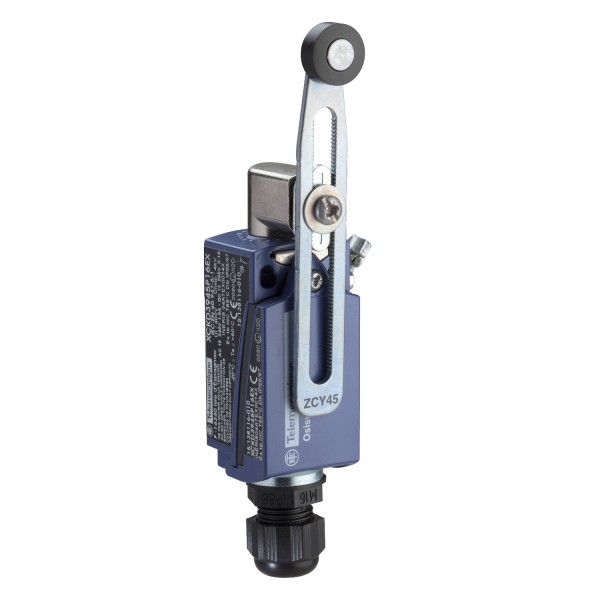

limit switch XCKD - roller lever plunger - 2NC + NO

Details

Main
range of product	OsiSense ATEX D
series name	Standard format
product or component type	Limit switch
device short name	XCKD
sensor design	Compact
body type	Fixed
head type	Rotary head
material	Metal
fixing mode	By the body
movement of operating head	Rotary
type of operator	Spring return roller lever thermoplastic variable length
switch actuation	By 30° cam
type of approach	Lateral approach, 2 directions
electrical connection	Screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
cable entry number	1 tapped entry M16 x 1.5 cable gland (included) 4…8 mm
number of poles	3
contacts type and composition	2 NC + 1 NO
contacts insulation form	Zb
contact operation	Snap action
number of steps	1
positive opening	With
minimum torque for tripping	0,1 N.m
maximum actuation speed	1,5 m/s
IP degree of protection	IP66 IEC 60529 IP67 IEC 60529

Complementary
body material	Zamak
head material	Zamak
positive opening minimum torque	0,25 N.m
minimum actuation speed	0,01 m/min
contact code designation	B300, AC-15 (Ue = 240 V), Ie = 1,5 A EN 60947-5-1 B300, AC-15 (Ue = 240 V), Ie = 1,5 A IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0,1 A EN 60947-5-1 R300, DC-13 (Ue = 250 V), Ie = 0,1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	6 A AC
[Ui] rated insulation voltage	300 VUL 508 400 V 3)IEC 60947-1 300 VCSA C22.2 No 14
maximum resistance across terminals	25 MOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	4 kV IEC 60664 4 kV IEC 60947-1
short-circuit protection	6 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13, inductive, 120 V, 2 W 3600 cyc/mn 0,5, DC IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive, 24 V, 4 W 3600 cyc/mn 0,5, DC IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive, 48 V, 3 W 3600 cyc/mn 0,5, DC IEC 60947-5-1 appendix C
mechanical durability	10000000 cycles
marking	II2 D-Ex tb IIIC T85°C Db IP66/67
width	31 mm
height	65 mm
depth	30 mm

Environment
shock resistance	50 gn 11 ms IEC 60068-2-27
vibration resistance	25 gn 10…500 Hz)IEC 60068-2-6
electrical shock protection class	Class I IEC 61140 Class I NF C 20-030
ambient air temperature for operation	-20…60 °C
protective treatment	TC
dust zone	Zone 21 - 22
product certifications	INERIS 04ATEX0014X IEC-Ex INE 17.0020X
standards	EN/IEC 60079-31 EN/IEC 60079-0
directives	2014/34/EU - ATEX directive

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
