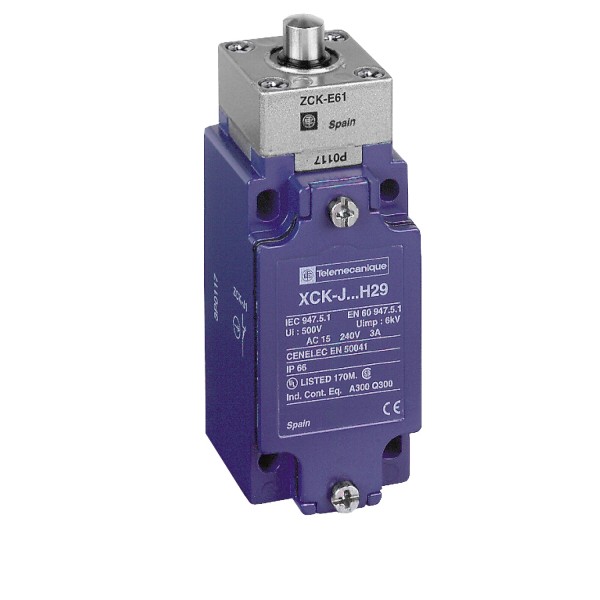

limit switch XCKJ - metal end plunger - 1NC+1NO - snap action

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKJ
sensor design	Form B conforming to CENELEC EN 50041
body type	Fixed
head type	Plunger head
material	Metal
body material	Zamak
head material	Zamak
fixing mode	By the body
movement of operating head	Linear
type of operator	Spring return plunger metal
type of approach	Vertical approach, 1 direction
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Snap action

Complementary
switch actuation	On end
electrical connection	Male connector M12, 5 pins
contacts insulation form	Zb
number of steps	1
positive opening	With
positive opening minimum force	50 N
minimum force for tripping	20 N
maximum actuation speed	0.5 m/s
repeat accuracy	0.1 mm on the tripping points with 1 million operating cycles
[Ie] rated operational current	0.27 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A 3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	4 A
[Ui] rated insulation voltage	60 V (pollution degree 3) conforming to IEC 60947-1
maximum resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	0.8 kV IEC 60664 0.8 kV IEC 60947-1
short-circuit protection	4 A cartridge fuse, type gG
electrical durability	5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability	30000000 cycles
width	40 mm
height	89 mm
depth	44 mm
net weight	0.43 kg
terminals description ISO n°1	(13-14)NO (21-22)NC

Environment
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance	25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
overvoltage category	Class I conforming to IEC 61140 Class I conforming to NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	UL CSA CCC
standards	CSA C22.2 No 14 UL 508 CENELEC EN 50041 IEC 60947-5-1 IEC 60204-1 EN 60947-5-1 EN 60204-1

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
