Details
Characteristics
| range of product | OsiSense XC | |
|---|---|---|
| series name | Standard format | |

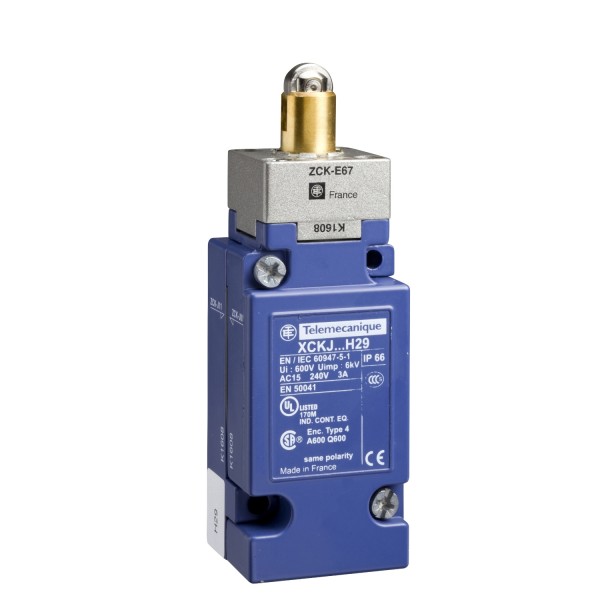

| product or component type | Limit switch | |
| device short name | XCKJ | |
| sensor design | - | |
| body type | Plug-in body | |
| head type | Plunger head | |
| material | Metal | |
| body material | Zamak | |
| head material | Zamak | |
| fixing mode | By the body | |
| movement of operating head | Linear | |
| type of operator | Spring return side plunger metal | |
| type of approach | Vertical approach, 1 direction | |
| cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm | |
| number of poles | 1 | |
| contacts type and composition | 1 C/O | |
| contact operation | Snap action |
| switch actuation | On end | |
|---|---|---|
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² | |
| contacts insulation form | Zb | |
| number of steps | 1 | |
| positive opening | Without | |
| repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles | |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A | |
| [Ithe] conventional enclosed thermal current | 10 A | |
| [Ui] rated insulation voltage | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 | |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 | |
| [Uimp] rated impulse withstand voltage | IEC 60664 6 kVIEC 60947-1 6 kV | |
| short-circuit protection | 10 A cartridge fuse, type gG | |
| electrical durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| width | 43 mm | |
| height | 84 mm | |
| depth | 36 mm | |
| terminals description ISO n°1 | (13-14)NO(11-12)NC |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 | |
|---|---|---|
| vibration resistance | 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 | |
| IP degree of protection | IP66 conforming to IEC 60529 | |
| IK degree of protection | IK07 conforming to EN 50102 | |
| overvoltage category | Class I conforming to IEC 61140Class I conforming to NF C 20-030 | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -40…70 °C | |
| protective treatment | TC | |
| product certifications | CSACCCUL | |
| standards | CENELEC EN 50041IEC 60204-1UL 508EN 60947-5-1IEC 60947-5-1EN 60204-1CSA C22.2 No 14 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Not applicable, out of EU RoHS legal scope | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
