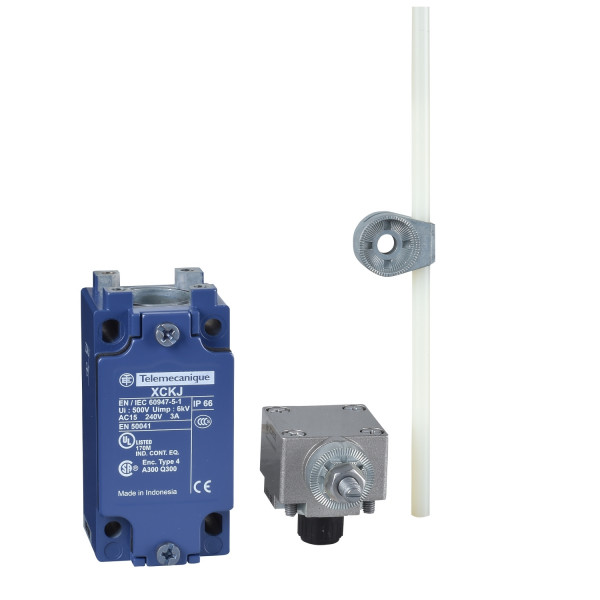

limit switch XCKJ - thermoplastic round rod lever 6 mm - 1NC+1NO - slow

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKJ
sensor design	Form D CENELEC EN 50041
body type	Fixed
head type	Rotary head
material	Metal
body material	Zamak
head material	Zamak
fixing mode	By the body
movement of operating head	Rotary
type of operator	Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
type of approach	Lateral approach, 1 or 2 programmable direction
cable entry	1 entry tapped for M20 x 1.5 cable gland 7…13 mm
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Slow-break, break before make

Complementary
switch actuation	By any moving part
electrical connection	Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Zb
number of steps	1
positive opening	Without
minimum torque for tripping	0,25 N.m
minimum actuation speed	6 m/min
maximum actuation speed	1,5 m/s
[Ie] rated operational current	3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A 0,27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	10 A
[Ui] rated insulation voltage	300 VUL 508 500 V 3)IEC 60947-1 300 VCSA C22.2 No 14
maximum resistance across terminals	25 MOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	6 kV IEC 60664 6 kV IEC 60947-1
short-circuit protection	10 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
mechanical durability	30000000 cycles
width	40 mm
height	77 mm
depth	44 mm
net weight	0,485 kg
terminals description ISO n°1	(13-14)NO (21-22)NC

Environment
shock resistance	50 gn 11 ms IEC 60068-2-27
vibration resistance	25 gn 10…500 Hz)IEC 60068-2-6
IP degree of protection	IP66 IEC 60529
IK degree of protection	IK07 EN 50102
overvoltage category	Class I IEC 61140 Class I NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	CSA UL CCC
standards	IEC 60204-1 UL 508 CENELEC EN 50041 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 EN 60204-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
