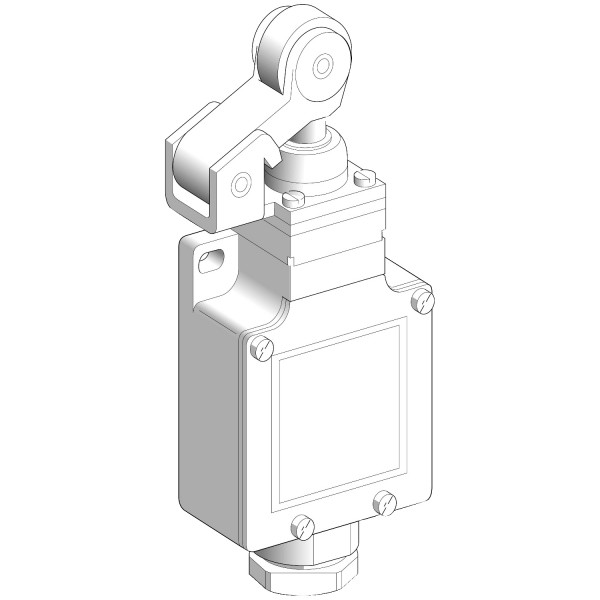

limit switch XCKL - th.plastic roller lever plunger - 1NC+1NO - slow

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKL
body type	Fixed
head type	Plunger head
material	Metal
body material	Zamak
fixing mode	By the body
movement of operating head	Linear
type of operator	Spring return roller lever plunger thermoplastic
type of approach	Lateral approach, 1 direction
cable entry	1 metal cable gland entry, cable outer diameter: 6…13.5 mm
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Slow-break, break before make

Complementary
switch actuation	By 30° cam
electrical connection	Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Zb
number of steps	1
positive opening	With
positive opening minimum force	24 N
minimum force for tripping	8 N
minimum actuation speed	6 m/min
maximum actuation speed	1.5 m/s
contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	10 A AC
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
maximum resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	IEC 60664 6 kV IEC 60947-1 6 kV
short-circuit protection	10 A cartridge fuse, type gG
electrical durability	5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability	20000000 cycles
width	52 mm
height	72 mm
depth	30 mm
net weight	0.305 kg
terminals description ISO n°1	(21-22)NC (13-14)NO

Environment
shock resistance	50 gn for 11 ms conforming to EN/IEC 60068-2-27
vibration resistance	25 gn (f= 10…500 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection	IP66 conforming to EN/IEC 60529
IK degree of protection	IK05 conforming to EN 50102
electrical shock protection class	Class I conforming to IEC 61140 Class I conforming to NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	UL CSA
standards	UL 508 IEC 60947-5-1 EN 60947-5-1 IEC 60204-1 EN 60204-1 CSA C22.2 No 14

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
