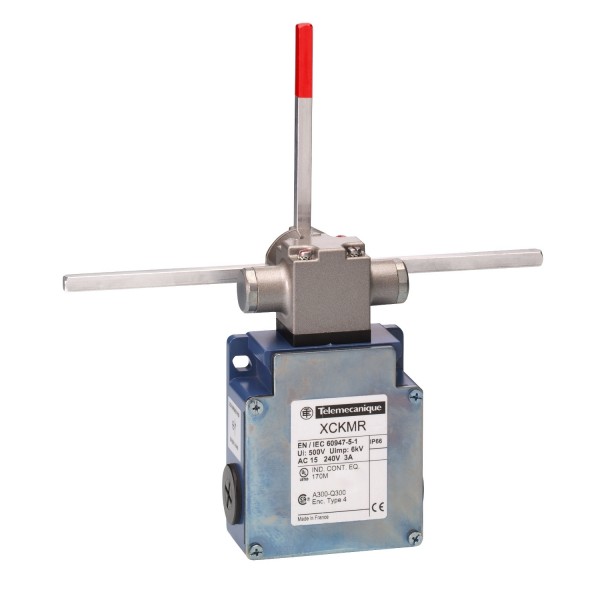

limit switch XCKMR - reverse head stay put crossed rods - 2x(2 NC) - slow

Details

Main
range of product	OsiSense XC
series name	Special format
product or component type	Limit switch
product specific application	For hoisting and mechanical handling applications
device short name	XCKMR
body type	Fixed
head type	Reversed rotary head
material	Metal
body material	Zamak
head material	Zamak
fixing mode	By the body
movement of operating head	Rotary
type of operator	Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
type of approach	Lateral approach, 2 directions
cable entry	3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm
number of poles	4
contacts type and composition	2 x (2 NC)
contact operation	Slow-break, staggered

Complementary
switch actuation	By any moving part
electrical connection	Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Zb
number of steps	5 electrical positions
contact block per direction [control circuit]	1 per direction
positive opening	With
positive opening minimum torque	0.75 N.m
minimum torque for tripping	0.5 N.m
minimum actuation speed	6 m/min
maximum actuation speed	1.5 m/s actuation point on the rod between 65 and 95 mm
maximum displacement angle	-180 ° 180 °
contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 500 V (pollution degree 3) conforming to EN/IEC 60947-1
maximum resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	IEC 60664 6 kV EN/IEC 60947-1 6 kV
short-circuit protection	10 A cartridge fuse, type gG
mechanical durability	2000000 cycles
width	200 mm
height	118 mm
depth	59 mm
net weight	0.55 kg
terminals description ISO n°1	(21-22)NC (11-12)NC

Environment
shock resistance	50 gn conforming to EN/IEC 60068-2-27
vibration resistance	25 gn (f= 10…500 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection	IP66 conforming to EN/IEC 60529
IK degree of protection	IK07 conforming to EN 50102
electrical shock protection class	Class I conforming to IEC 60536
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
protective treatment	TC
product certifications	UL CSA CCC CE
standards	CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
