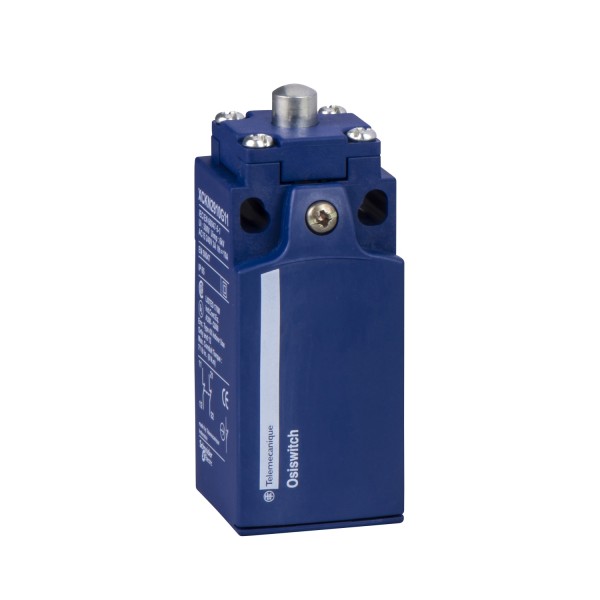

limit switch XCKN - metal end plunger - 1NC+1NO - slow

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKN
sensor design	Compact form B
body type	Fixed
head type	Plunger head
material	Plastic
body material	Plastic
head material	Plastic
fixing mode	By the body
movement of operating head	Linear
type of operator	Spring return plunger metal
type of approach	Vertical approach, 1 direction
cable entry	1 entry tapped for Pg 11 cable gland
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Slow-break, break before make

Complementary
switch actuation	On end
electrical connection	Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Zb
positive opening	With
positive opening minimum force	30 N
minimum force for tripping	15 N
minimum actuation speed	6 m/min
maximum actuation speed	0.5 m/s
repeat accuracy	0.1 mm on the tripping points with 1 million operating cycles
contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	IEC 60664 6 kV IEC 60947-1 6 kV
short-circuit protection	10 A cartridge fuse, type gG
electrical durability	5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability	10000000 cycles
width	30 mm
height	75 mm
depth	30 mm
net weight	0.135 kg
terminals description ISO n°1	(21-22)NC (13-14)NO

Environment
shock resistance	45 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance	25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK04 conforming to EN 50102
overvoltage category	Class II conforming to IEC 61140 Class II conforming to NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	CCC UL CSA
standards	EN 60204-1 CSA C22.2 No 14 EN 60947-5-1 UL 508 IEC 60204-1 IEC 60947-5-1

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
