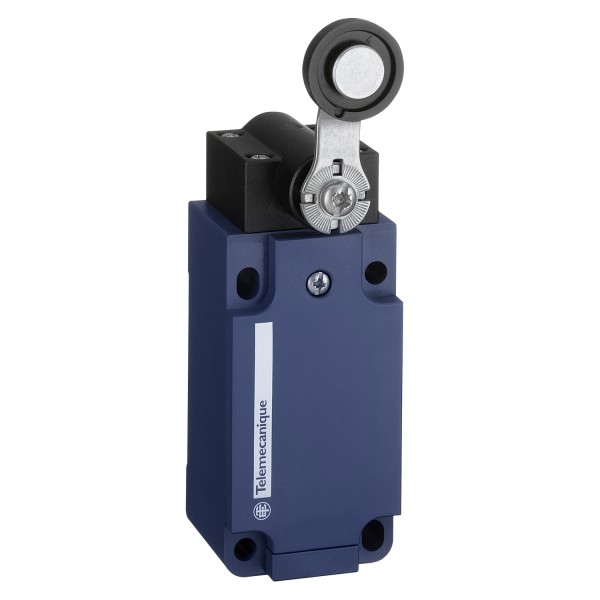

limit switch XCKS - thermoplastic roller lever - 1NC+1NO - slow-break

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKS
sensor design	Form A CENELEC EN 50041
body type	Fixed
head type	Rotary head
material	Plastic
body material	Plastic
head material	Plastic
fixing mode	By the body
movement of operating head	Rotary
type of operator	Spring return roller lever thermoplastic
type of approach	Lateral approach, 1 or 2 programmable direction
cable entry	1 entry tapped for M20 x 1.5 cable gland 7…13 mm
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Slow-break, break before make

Complementary
switch actuation	By 30° cam
electrical connection	Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
contacts insulation form	Zb
number of steps	1
positive opening	With
positive opening minimum torque	0,15 N.m
minimum torque for tripping	0,1 N.m
minimum actuation speed	6 m/min
maximum actuation speed	1,5 m/s
contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0,27 A EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	10 A AC
[Ui] rated insulation voltage	300 VUL 508 500 V 3)IEC 60947-1 300 VCSA C22.2 No 14
maximum resistance across terminals	25 MOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	6 kV IEC 60664 6 kV IEC 60947-1
short-circuit protection	10 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
mechanical durability	20000000 cycles
width	40 mm
height	130 mm
depth	60 mm
net weight	0,16 kg
terminals description ISO n°1	(21-22)NC (13-14)NO

Environment
shock resistance	50 gn 11 ms IEC 60068-2-27
vibration resistance	25 gn 10…500 Hz)IEC 60068-2-6
IP degree of protection	IP67 IEC 60529 IP66 IEC 60529
IK degree of protection	IK05 EN 50102
electrical shock protection class	Class II IEC 61140 Class II NF C 20-030
overvoltage category	Class II IEC 61140 Class II NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	CCC CSA UL
standards	UL 508 EN 60947-5-1 IEC 60947-5-1 CSA C22.2 No 14 EN 60204-1 CENELEC EN 50041 IEC 60204-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
