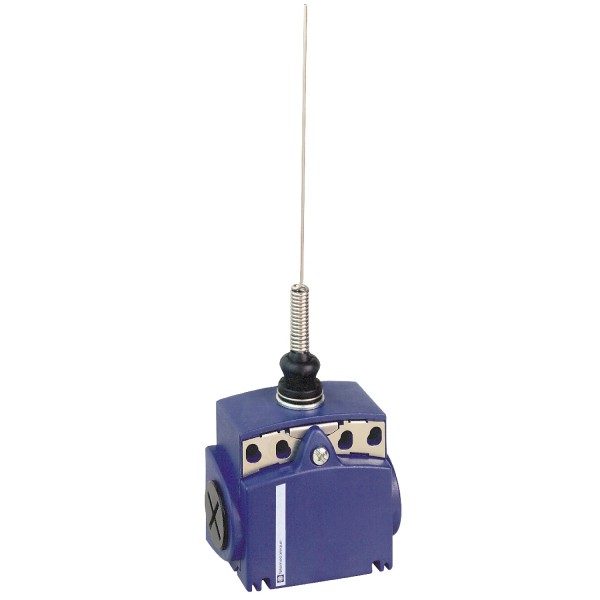

limit switch XCKT - cat's whisker - 1NC+1NO - snap

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKT
sensor design	Compact
body type	Fixed
head type	Multi-directional head
material	Plastic
body material	Plastic
head material	Zamak
fixing mode	By the body
movement of operating head	Multi-directional
type of operator	Spring return cat''s whisker
type of approach	Multi-directional approach
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Snap action

Complementary
switch actuation	By any moving part
electrical connection	Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
cable entry	2 entries tapped for M16 x 1.5 cable gland 4…8 mm
contacts insulation form	Zb
positive opening	Without
minimum torque for tripping	0,13 N.m
maximum actuation speed	1 m/s
repeat accuracy	0.1 mm on the tripping points with 1 million operating cycles
contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0,27 A EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 VUL 508 500 V 3)IEC 60947-1 300 VCSA C22.2 No 14
maximum resistance across terminals	25 MOhm IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	6 kV IEC 60664 6 kV IEC 60947-1
short-circuit protection	10 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
mechanical durability	5000000 cycles
width	58 mm
height	51 mm
depth	30 mm
net weight	0,095 kg
terminals description ISO n°1	(13-14)NO (21-22)NC

Environment
shock resistance	50 gn 11 ms IEC 60068-2-27
vibration resistance	25 gn 10…500 Hz)IEC 60068-2-6
IP degree of protection	IP66 IEC 60529 IP67 IEC 60529
IK degree of protection	IK04 EN 50102
electrical shock protection class	Class II IEC 61140 Class II NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	CSA UL CCC
standards	UL 508 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1
