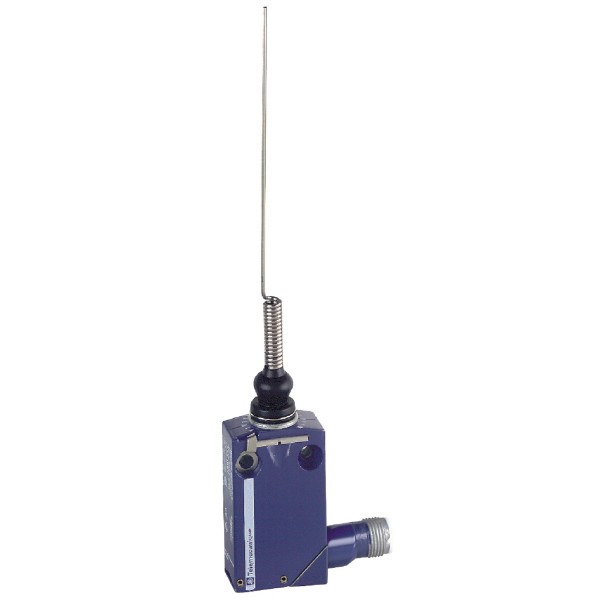

limit switch XCMD - cat's whisker - 1NC+1NO - snap - M12

Product was successfully added to your shopping cart.

limit switch XCMD - cat's whisker - 1NC+1NO - snap - M12

Tootekood: XCMD2106C12

Quick Overview

Saadavus: Tellimisel

39,41 € (ilma KM-ta)

Qty:

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCMD
sensor design	Miniature
body type	Plug-in body
head type	Multi-directional head
material	Metal
body material	Zamak
head material	Zamak
fixing mode	By the body
movement of operating head	Multi-directional
type of operator	Spring return cat''s whisker
type of approach	Multi-directional approach
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Snap action

Complementary
switch actuation	By any moving part
electrical connection	Male connector M12, 5 pins
contacts insulation form	Zb
positive opening	Without
minimum force for tripping	0.1 N
maximum actuation speed	1 m/s
[Ie] rated operational current	0.22 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A 3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	4 A
[Ui] rated insulation voltage	60 V (pollution degree 3) conforming to IEC 60947-5-1
maximum resistance across terminals	25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	0.8 kV IEC 60664 0.8 kV IEC 60947-1
short-circuit protection	4 A cartridge fuse, type gG
electrical durability	5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability	5000000 cycles
width	30 mm
height	50 mm
depth	16 mm
net weight	0.085 kg

Environment
shock resistance	25 gn for 18 ms conforming to IEC 60068-2-27
vibration resistance	5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP68 conforming to IEC 60529
IK degree of protection	IK06 conforming to EN 62262
electrical shock protection class	Class I conforming to IEC 61140 Class I conforming to NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	CSA UL CCC
standards	EN/IEC 60204-1 EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
