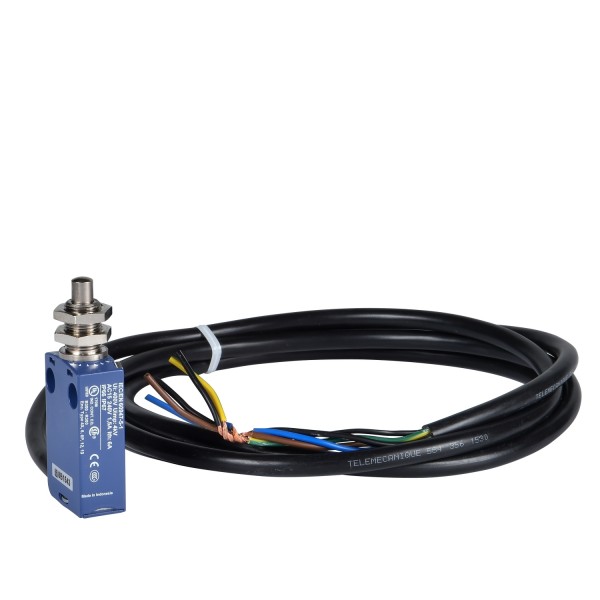

limit switch XCMD - M12 metal end plunger - 1NC+1NO - slow

Details

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCMD
sensor design	Miniature
body type	Fixed
head type	M12 plunger head
material	Metal
body material	Zamak
head material	Zamak
fixing mode	By the head
movement of operating head	Linear
type of operator	Spring return plunger metal
type of approach	Vertical approach, 1 direction
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Slow-break

Complementary
switch actuation	On end
electrical connection	Removable cable connector
cable length	1 m
cable composition	5 x 0.75 mm²
wire insulation material	PvR
contacts insulation form	Zb
positive opening	With
positive opening minimum force	42,5 N
minimum force for tripping	8,5 N
minimum actuation speed	6 m/min
maximum actuation speed	0,5 m/s
contact code designation	B300, AC-15 (Ue = 240 V), Ie = 1,5 A EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V), Ie = 0,1 A EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 V 3)UL 508 400 V 3)IEC 60947-5-1 300 V 3)CSA C22.2 No 14
maximum resistance across terminals	25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage	4 kV IEC 60664 4 kV IEC 60947-1
short-circuit protection	6 A cartridge fuse gG
electrical durability	5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0,5 IEC 60947-5-1 appendix C
mechanical durability	10000000 cycles
width	30 mm
height	50 mm
depth	16 mm
net weight	0,195 kg

Environment
shock resistance	25 gn 18 ms IEC 60068-2-27
vibration resistance	25 gn 10…500 Hz)IEC 60068-2-6
IP degree of protection	IP66 IEC 60529 IP67 IEC 60529 IP68 IEC 60529
IK degree of protection	IK06 EN 62262
overvoltage category	Class I IEC 61140 Class I NF C 20-030
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
product certifications	CSA CCC UL
standards	UL 508 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
