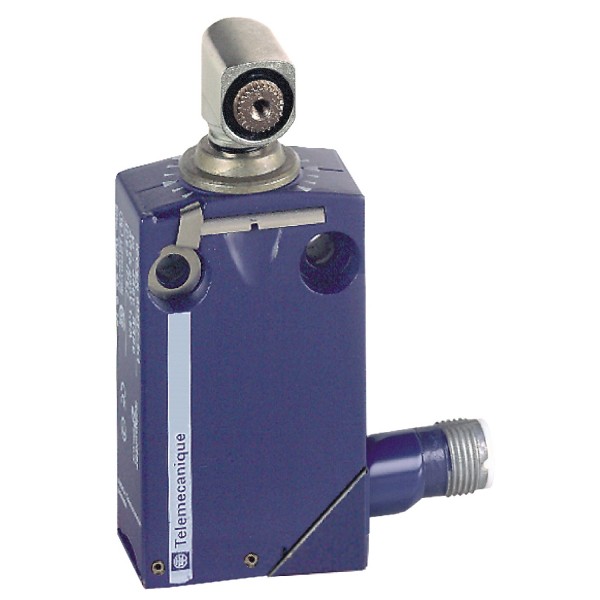

limit switch XCMD - with rotary head W/O operating lever - 1NC+1NO - snap - M12

Ülevaaded: 0

Tootekood: XCMD2101C12

Quick Overview

Saadavus: Tellimisel

51,18 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch
device short name
XCMD
sensor design
Miniature
body type
Plug-in body
head type
Rotary head
material
Metal
body material
Zamak
head material
Zamak
fixing mode
By the body
movement of operating head
Rotary
type of operator
Spring return without operating lever
type of approach
Lateral approach, 2 directions
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Snap action
Complementary
electrical connection
Male connector M12, 5 pins
contacts insulation form
Zb
positive opening
With
maximum actuation speed
1.5 m/s
[Ie] rated operational current
0.22 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
4 A
[Ui] rated insulation voltage
60 V (pollution degree 3) conforming to IEC 60947-5-1
maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
IEC 60664 0.8 kV
IEC 60947-1 0.8 kV
short-circuit protection
4 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability
10000000 cycles
width
30 mm
height
50 mm
depth
16 mm
net weight
0.11 kg
Environment
shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
vibration resistance
5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to EN 62262
electrical shock protection class
Class I conforming to IEC 61140
Class I conforming to NF C 20-030
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
protective treatment
TC
product certifications
CSA
UL
CCC
standards
CSA C22.2 No 14
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
