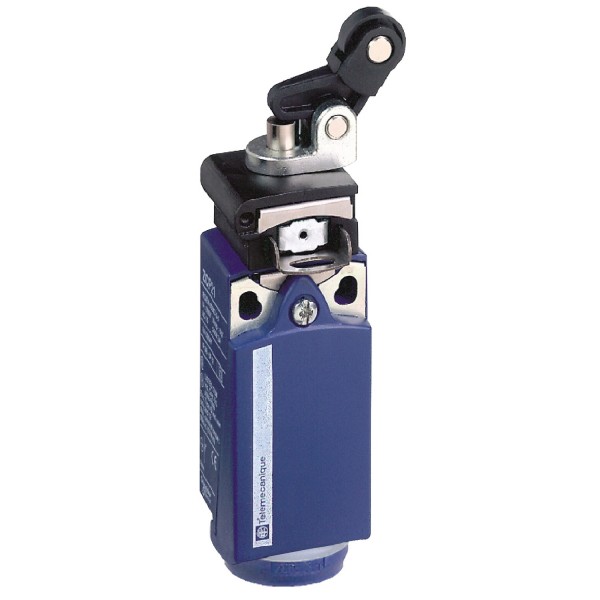

limit switch XCPR - th.plastic roller lever plung. Ver - 1NC+1NO - slow - Pg11

Ülevaaded: 0

Tootekood: XCPR2527G11

Quick Overview

Saadavus: Ei saa enam tellida

118,97 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch
device short name
XCPR
sensor design
Compact
reset
With
body type
Fixed
head type
Plunger head
material
Plastic
body material
Plastic
head material
Zamak
fixing mode
By the body
movement of operating head
Linear
type of operator
Spring return roller lever plunger thermoplastic
type of approach
Vertical approach, 1 direction
cable entry
1 entry tapped for Pg 11 cable gland, cable outer diameter: 9…12 mm
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Slow-break, break before make
Complementary
switch actuation
By 30° cam
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
contacts insulation form
Zb
positive opening
With
positive opening minimum force
18 N
minimum force for tripping
6 N
maximum actuation speed
1 m/s
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to EN 60947-1
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
31 mm
height
65 mm
depth
30 mm
net weight
0.12 kg
terminals description ISO n°1
(13-14)NO
(21-22)NC
Environment
shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IK degree of protection
IK04 conforming to EN 50102
overvoltage category
Class II conforming to IEC 61140
Class II conforming to NF C 20-030
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
protective treatment
TC
product certifications
CSA
UL
standards
EN 60947-5-1
IEC 60204-1
UL 508
CSA C22.2 No 14
EN 60204-1
IEC 60947-5-1
Offer Sustainability
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
