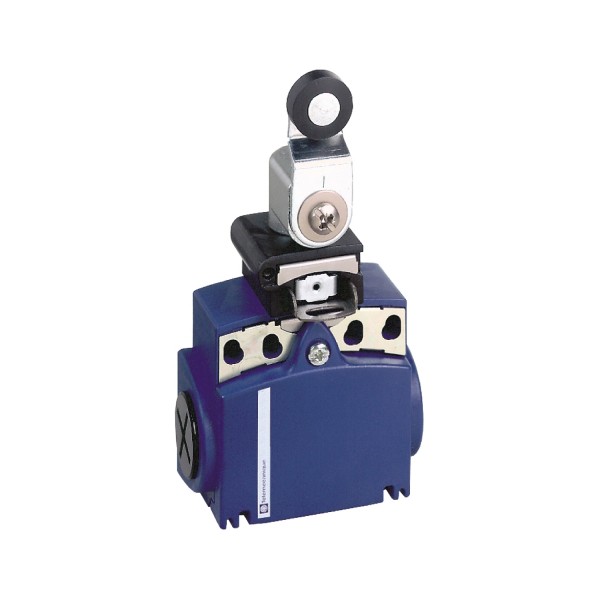

limit switch XCTR - thermoplastic roller lever - 1NC+1NO - snap - Pg11

Ülevaaded: 0

Tootekood: XCTR2118G11

Quick Overview

Saadavus: Tellimisel

99,60 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Standard format
product or component type
Limit switch
device short name
XCTR
sensor design
Compact
reset
With
body type
Fixed
head type
Rotary head
material
Plastic
body material
Plastic
head material
Zamak
fixing mode
By the body
movement of operating head
Rotary
type of operator
Spring return roller lever thermoplastic
type of approach
Lateral approach, 2 directions
cable entry
2 entries tapped for Pg 11 cable gland
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Snap action
Complementary
tracks
24/40 mm
switch actuation
By 30° cam
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
contacts insulation form
Zb
positive opening
With
positive opening minimum torque
0.25 N.m
minimum torque for tripping
0.1 N.m
maximum actuation speed
1.5 m/s
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to EN 60947-1
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
6 kV IEC 60664
6 kV IEC 60947-1
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
width
58 mm
height
51 mm
depth
30 mm
net weight
0.165 kg
terminals description ISO n°1
(21-22)NC
(13-14)NO
Environment
shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance
25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IK degree of protection
IK04 conforming to EN 50102
overvoltage category
Class II conforming to IEC 61140
Class II conforming to NF C 20-030
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
protective treatment
TC
product certifications
UL
CSA
standards
EN 60204-1
IEC 60947-5-1
IEC 60204-1
UL 508
EN 60947-5-1
CSA C22.2 No 14
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
