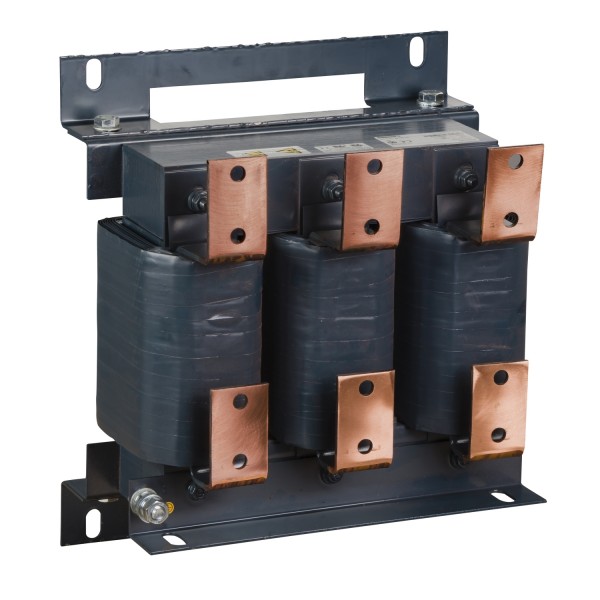

line choke - 0.032 mH - 720 A - 3 phases - 428 W - for variable speed drive

Product was successfully added to your shopping cart.

line choke - 0.032 mH - 720 A - 3 phases - 428 W - for variable speed drive

Tootekood: VW3A4565

Quick Overview

Saadavus: Tellimisel

1 844,58 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	Line choke
product compatibility	ATV61HC40N4D - line choke - 1 per drive ATV71HC31N4 - line choke - 1 per drive
number of phases	Three phase
range compatibility	Altivar 71 Altivar 61
device application	Reduction of current harmonics
value of inductance	0,032 mH
[In] rated current	720 A
saturation current	1352 A
thermal losses	428 W
electrical connection	Bare wires 13 mm

Complementary
power supply frequency	50...60 Hz
max current	1.65 x nominal current 60 s)
maximum voltage drop at rated load	5 %
electrical insulation class	Class F
minimum clearance distance	5,5 mm IEC 60664
leakage distance	11,5 mm IEC 60664
net weight	82 kg
width	385 mm
height	445 mm
depth	275 mm

Environment
standards	EN 50178 VDE 0160 level 1 IEC 60076 (with HD398)
IP degree of protection	Choke IP00 Terminals IP00
environmental characteristic	3B1 IEC 721-3-3 3C2 IEC 721-3-3 3S1 IEC 721-3-3
pollution degree	2 EN 50178
vibration resistance	1 gn 13…200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms IEC 60068-2-27
relative humidity	0…95 %
ambient air temperature for operation	45…55 °C with current derating of 2 % per °C) 0…45 °C without current derating)
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating <= 1000 m without 1000...3000 m with current derating 1 % per 100 m

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
