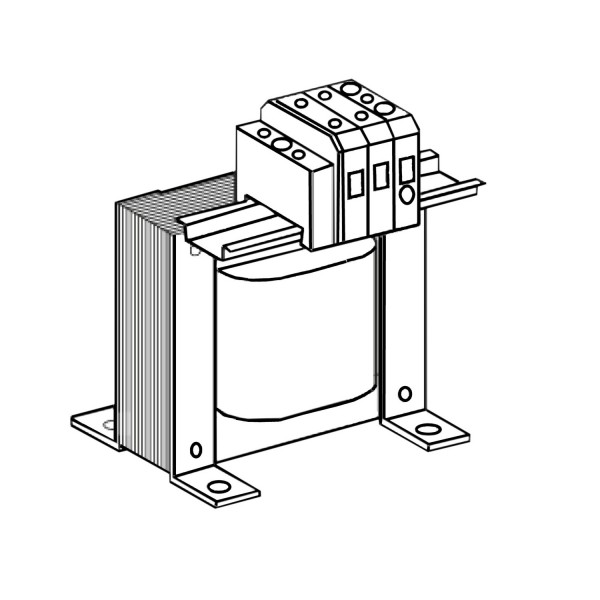

line choke - 1 mH - 45 A - 1 phase - 50 W - for variable speed drive

Product was successfully added to your shopping cart.

line choke - 1 mH - 45 A - 1 phase - 50 W - for variable speed drive

Tootekood: VW3A58502

Quick Overview

Saadavus: Ei saa enam tellida

231,56 € (ilma KM-ta)

Details

Main
range of product	Altivar
product or component type	Line choke
product compatibility	ATV61HU55M3 - line choke - 1 per drive ATV71HU55M3 - line choke - 1 per drive ATV61HU75M3 - line choke - 1 per drive ATV71HU75M3 - line choke - 1 per drive
number of phases	Single phase
range compatibility	Altivar 71 Altivar 61
device application	Reduction of current harmonics
value of inductance	1 mH
[In] rated current	45 A
thermal losses	50 W
electrical connection	Terminal 6 mm² / AWG 8, 0.8…1 N.m

Complementary
power supply frequency	50...60 Hz
max current	1.65 x nominal current (duration = 60 s)
maximum voltage drop at rated load	5 %
electrical insulation class	Class F
minimum clearance distance	5.5 mm IEC 60664
leakage distance	11.5 mm conforming to IEC 60664
net weight	3.5 kg
width	133 mm
height	150 mm
depth	105 mm

Environment
standards	EN 50178 VDE 0160 level 1 IEC 60076 (with HD398)
IP degree of protection	Choke: IP00 Terminals: IP20
environmental characteristic	3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3
pollution degree	2 conforming to EN 50178
vibration resistance	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
relative humidity	0…95 %
ambient air temperature for operation	45…55 °C (with current derating of 2 % per °C) 0…45 °C (without current derating)
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration

Contractual warranty
Warranty	18 months
