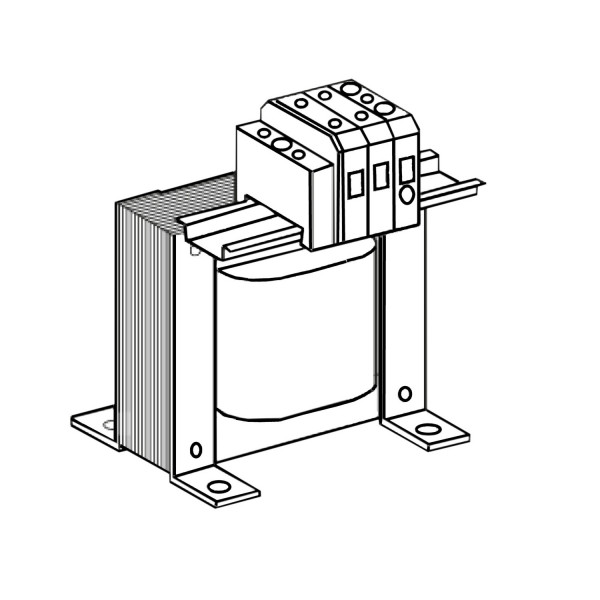

line choke - 2 mH - 25 A - 1 phase - 45 W - for variable speed drive

Ülevaaded: 0

Tootekood: VW3A58501

Quick Overview

Saadavus: Ei saa enam tellida

207,07 € (ilma KM-ta)

Details

Main
range of product
Altivar
product or component type
Line choke
product compatibility
ATV61HU40M3 - line choke - 1 per drive
ATV71HU40M3 - line choke - 1 per drive
number of phases
Single phase
range compatibility
Altivar 61
Altivar 71
device application
Reduction of current harmonics
value of inductance
2 mH
[In] rated current
25 A
thermal losses
45 W
electrical connection
Terminal 16 mm² / AWG 4, 1.2…1.4 N.m
Complementary
power supply frequency
50...60 Hz
max current
1.65 x nominal current (duration = 60 s)
maximum voltage drop at rated load
5 %
electrical insulation class
Class F
minimum clearance distance
5.5 mm IEC 60664
leakage distance
11.5 mm conforming to IEC 60664
net weight
3.5 kg
width
133 mm
height
150 mm
depth
95 mm
Environment
standards
VDE 0160 level 1
EN 50178
IEC 60076 (with HD398)
IP degree of protection
Choke: IP00
Terminals: IP20
environmental characteristic
3B1 conforming to IEC 721-3-3
3C2 conforming to IEC 721-3-3
3S1 conforming to IEC 721-3-3
pollution degree
2 conforming to EN 50178
vibration resistance
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
shock resistance
15 gn for 11 ms conforming to IEC 60068-2-27
relative humidity
0…95 %
ambient air temperature for operation
45…55 °C (with current derating of 2 % per °C)
0…45 °C (without current derating)
ambient air temperature for storage
-25…70 °C
operating altitude
<= 1000 m without
1000...3000 m with current derating 1 % per 100 m
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Contractual warranty
Warranty
18 months
