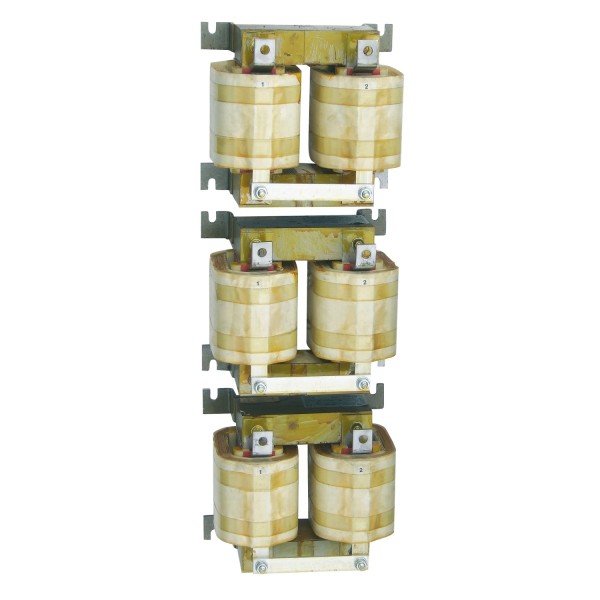

line filter choke - 340 kW - 380…480 V

Tootekood: VW3A7267

Quick Overview

Saadavus: Ei saa enam tellida

2 814,26 € (ilma KM-ta)

Details

Main
product or component type	Line filter choke
device short name	LFC
network number of phases	3 phases
[Us] rated supply voltage	380...480 V +/- 10 %
network frequency	50/60 Hz
range compatibility	Altivar 61 Altivar 71
product specific application	Component of the Active Front End
assembly style	Built-in unit
type of cooling	Natural
product destination	1 active infeed converter (AIC) VW3A7253 1 active infeed converter (AIC) VW3A7254 1 active infeed converter (AIC) VW3A7255 2 active infeed converter (AIC) VW3A7256 2 active infeed converter (AIC) VW3A7257 2 active infeed converter (AIC) VW3A7258 1 active infeed converter (AIC) VW3A7283 2 active infeed converter (AIC) VW3A7286 2 active infeed converter (AIC) VW3A7287

Complementary
line current	495 A at 50 °C
thermal losses	2370 W
electrical connection	Bar M10 - 2 x 150 mm² 24 N.m (1) Bar M10 - 2 x 150 mm² 24 N.m (2) Bar M10 - 95 mm² 24 N.m (PE)
height	360 mm
width	970 mm
depth	255 mm
net weight	132 kg

Environment
environmental characteristic	3K3 conforming to EN/IEC 60721-3-3
relative humidity	0…95 %
ambient air temperature for operation	-10…45 °C -10…60 °C (with current derating)
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m 1000...3000 m with current derating 1 % per 100 m
electrical insulation class	Class H
vibration resistance	1.5 mm (f= 3…10 Hz) conforming to IEC 60068-2-6 0.6 gn (f= 10…200 Hz) conforming to IEC 60068-2-6
shock resistance	7 gn for 11 ms conforming to EN/IEC 60068-2-27
IP degree of protection	IP00
product certifications	CSA (pending) UL (pending) CE

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
