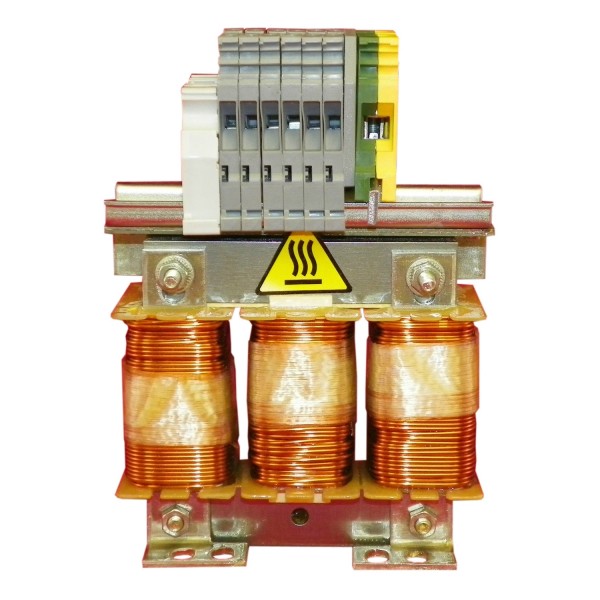

line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive

Product was successfully added to your shopping cart.

line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive

Tootekood: VW3A4555

Quick Overview

Saadavus: Tellimisel

460,73 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	Line/motor choke
product compatibility	LXM32MD85N4 - line choke - 1 per drive LXM32MC10N4 - line choke - 1 per drive Variable speed drive ATV340 15 kW 380...480 V - line choke - 1 per drive ATV61CD15N4 - motor choke - 1 per drive ATV61HD11M3X - line choke - 1 per drive ATV61HD15N4 - motor choke - 1 per drive ATV61HD18N4 - line choke - 1 per drive ATV61HD22N4 - line choke - 1 per drive ATV61HD30Y - line choke - 1 per drive ATV61HD37Y - line choke - 1 per drive ATV61HD45Y - line choke - 1 per drive ATV61HU75M3 - line choke - 1 per drive ATV61KD15N4 - motor choke - 1 per drive ATV61WD18N4 - line choke - 1 per drive ATV61WD18N4C - line choke - 1 per drive ATV61WD22N4 - line choke - 1 per drive ATV61WD22N4C - line choke - 1 per drive ATV71HD11M3X - line choke - 1 per drive ATV71HD18N4 - line choke - 1 per drive ATV71HD22N4 - line choke - 1 per drive ATV71HD30Y - line choke - 1 per drive ATV71HD37Y - line choke - 1 per drive ATV71HD45Y - line choke - 1 per drive ATV71HU75M3 - line choke - 1 per drive ATV71WD18N4 - line choke - 1 per drive ATV71WD22N4 - line choke - 1 per drive ATV312HD11M3 - line choke - 1 per drive ATV312HD15M3 - line choke - 1 per drive ATV32HD15N4 - motor choke - 1 per drive Variable speed drive ATV340 18 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV340 22 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV320 15 kW 380...500 V - three phase - motor choke - 1 per drive Variable speed drive ATV320 11 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 15 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV630 30 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 37 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 45 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 30 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 37 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 45 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 600 V - three phase - line choke - 40 hp - 1 per drive Variable speed drive ATV630 600 V - three phase - line choke - 50 hp - 1 per drive Variable speed drive ATV630 600 V - three phase - line choke - 60 hp - 1 per drive Variable speed drive ATV930 600 V - three phase - line choke - 40 hp - 1 per drive Variable speed drive ATV930 600 V - three phase - line choke - 50 hp - 1 per drive Variable speed drive ATV930 600 V - three phase - line choke - 60 hp - 1 per drive
number of phases	Three phase
range compatibility	Altivar 32 Altivar Machine ATV340 Lexium 62 Altivar 71 Altivar Machine ATV320 Altivar 312 Altivar Process ATV900 Altivar Process ATV600 Altivar 61 Lexium 32
device application	Reduction of overvoltages at motor terminals Reduction of current harmonics
value of inductance	0,5 mH
[In] rated current	60 A
thermal losses	94 W
electrical connection	Terminal 35 mm² / AWG 0, 2,5…3 N.m

Complementary
power supply frequency	50...60 Hz
max current	1.65 x nominal current 60 s)
maximum voltage drop at rated load	5 %
electrical insulation class	Class F
minimum clearance distance	5,5 mm IEC 60664
leakage distance	11,5 mm IEC 60664
net weight	11 kg
width	180 mm
height	210 mm
depth	165 mm

Environment
standards	EN 50178 IEC 60076 (with HD398) VDE 0160 level 1
IP degree of protection	Choke IP00 Terminals IP10
environmental characteristic	3B1 IEC 721-3-3 3C2 IEC 721-3-3 3S1 IEC 721-3-3
pollution degree	2 EN 50178
vibration resistance	1 gn 13…200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6
shock resistance	15 gn 11 ms IEC 60068-2-27
relative humidity	0…95 %
ambient air temperature for operation	45…55 °C with current derating of 2 % per °C) 0…45 °C without current derating)
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without current derating <= 1000 m without

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
