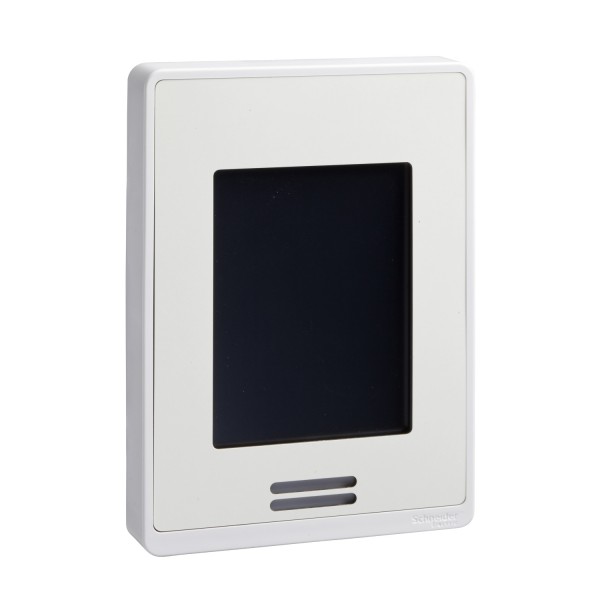

Line-Voltage Fan Coil Controller BACnet - rel humidity - WH

Ülevaaded: 0

Tootekood: SER8350A0B11

Quick Overview

Saadavus: Tellimisel

616,48 € (ilma KM-ta)

Details

Main
range
EcoStruxure Building Expert
product name
SE8000 Series
device short name
SER8300
product or component type
Room controller
sensor type
10 kOhm T2 NTC thermistor measurement range: +/- 0.1 °C
Single point calibrated bulk polymer RH sensor measurement range: +/- 5 %
colour tint
White
Complementary
device application
Low voltage fan coil
[Us] rated supply voltage
7 V DC +/- 10 %
network frequency
60 Hz
50 Hz
[In] rated current
4 A
communication port protocol
BACnet MS/TP
function available
Economiser
Humidity control
Scheduling not included
setpoint range cooling
12…37.5 °C cooling
4.5…32 °C heating
temperature display range
-40…50 °C
measurement accuracy
Temperature: +/- 0.5 °C,
Humidity: +/- 5 %, 20...80 % RH (non-condensing)
discrete input type
3 discrete input
number of outputs
0
surface finish
Matt
surface treatment
Untreated
AWG gauge
AWG 24...AWG 18
width
86 mm
depth
25 mm
height
120 mm
net weight
340 g
market segment
Lodging
Small commercial
Hotel
Buildings
Healthcare
Non-critical buildings
Office
Residential
School
Environment
dehumidification setpoint range
30…95 %
relative humidity
0…95 %
ambient air temperature for operation
0…50 °C
ambient air temperature for storage
-30…50 °C
standards
IEC 61326-1:2005
FCC part 15 subpart B
ICES-003
ETSI EN 301 328:V1.8.1
ETSI EN 301 489-1:v1.9.2
FCC part 15 subpart C
RSS 210 issue 8
IEC 61010-1:ed. 3
directives
2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive
2014/53/EU - radio equipment directive
Offer Sustainability
Sustainable offer status
Green Premium product
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
