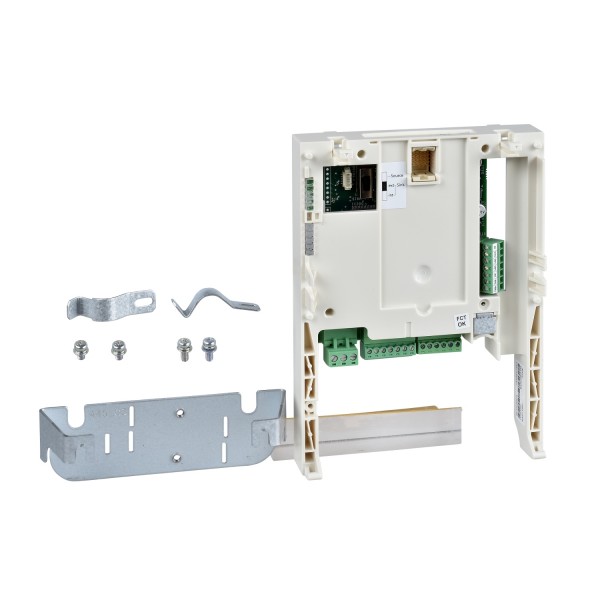

logic I/O card - for ATV61/ATV71

Tootekood: VW3A3201

Quick Overview

Saadavus: Tellimisel

103,62 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Logic I/O card
range compatibility	Altivar Lift Altivar 71Q Altivar 61 Altivar 71 Altivar 61Q
supply	Internal supply for reference potentiometer, 10.5 V DC 10…11 V) , <0,01 A 1…10 kOhm overload and short-circuit protection Internal supply, 24 V DC 21…27 V) , <0,2 A overload and short-circuit protection
discrete output number	5
discrete output type	R3A, R3B, R3C) configurable relay logic LO1, LO2) assignable logic 1,5…2,5 ms level 1 PLC
discrete output logic	LO1, LO2) negative LO1, LO2) positive
discrete input number	4
discrete input type	LI7...LI10) programmable level 1 PLC 3.5 kOhm 1,5…2,5 ms
discrete input logic	Negative LI7...LI10), >= 16 V, <= 10 V Positive LI7...LI10), <= 5 V, >= 11 V

Complementary
electrical durability	100000 cycles configurable relay logic
discrete output voltage	24 V DC 12...30 V) assignable logic
maximum output current	0,2 A, assignable logic
minimum switching current	3 mA 24 V DC configurable relay logic
maximum switching current	Configurable relay logic 2 A 250 V AC inductive, cos phi = 0,4 7 ms Configurable relay logic 2 A 30 V DC inductive, cos phi = 0,4 7 ms Configurable relay logic 5 A 250 V AC resistive, cos phi = 1 Configurable relay logic 5 A 30 V DC resistive, cos phi = 1
PTC probe input	TH1+, TH1- trip resistance 3 kOhm TH1+, TH1- reset resistance 1.8 Ohm TH1+, TH1- short circuit protection < 0.05 Ohm TH1+, TH1- for 6 PTC probe <= 1.5 Ohm
discrete input voltage	24 V DC <= 30 V)programmable
electrical connection	Terminal, 1.5 mm² / AWG 16, 0,25 N.m
net weight	0,3 kg

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
