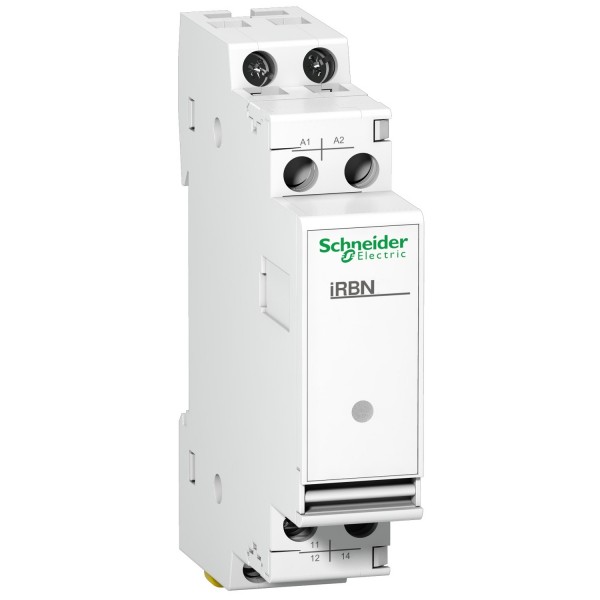

low level interface relay iRBN - 5mA/5VAC-DC - 2A/250VCA - 230VAC

Ülevaaded: 0

Tootekood: A9A15393

Quick Overview

Saadavus: Tellimisel

63,98 € (ilma KM-ta)

Details

Main
device application
Low level interface relay
function available
Actuation of low-amperage electronic circuits upon receiving LV order
range
Acti 9
product name
Acti 9 iRBN
product or component type
Relay
device short name
IRBN
signal contacts composition
1 C/O
[Uc] control circuit voltage
230 V AC 50/60 Hz
Complementary
[Ie] rated operational current
2 A at 250 V AC
0.005 A at 5 V AC
0.005 A at 5 V DC
[Ui] rated insulation voltage
4000 V
local signalling
LED (green)power ON:
supply holding power
2.5 VA
supply inrush power
5 VA
mounting mode
Fixed
mounting support
35 mm symmetrical DIN rail
9 mm pitches
2
electrical durability
100000 cycles
connections - terminals
Tunnel type terminals
Environment
standards
IEC 529
IEC 255-100
Offer Sustainability
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
