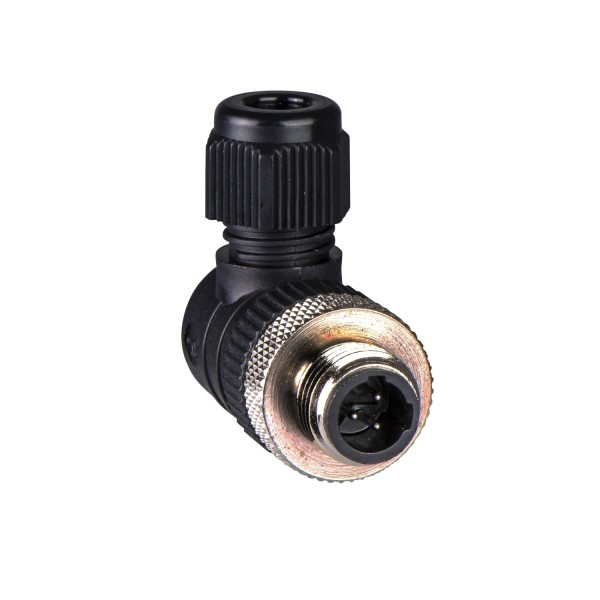

male, 1/2 20UNF, 3-pin, elbowed connector - cable gland Pg 7

Tootekood: XZCC20MCM30B

Quick Overview

Saadavus: Tellimisel

15,93 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessories
accessory / separate part type	Connector
electrical connection	Elbowed male connector 1/2 20 UNF, 3 pins
collar material	Metal
status LED	Without
cable connection	Screw terminal 0,75 mm² 3…6 mm

Complementary
cable gland type	Pg 7
cable connector fixing	Screw-on
[Ue] rated operational voltage	250 V AC
[In] rated current	4 A
enclosure material	Plastic
minimum insulating resistance	1000 GΩ
contact resistance	8000 µOhm
net weight	0,025 kg

Environment
IP degree of protection	IP67
ambient air temperature for operation	-40…85 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ei rakendu, ei jää EL-i RoHS seadustega määratud piiridesse

Contractual warranty
Garantii	18 months
