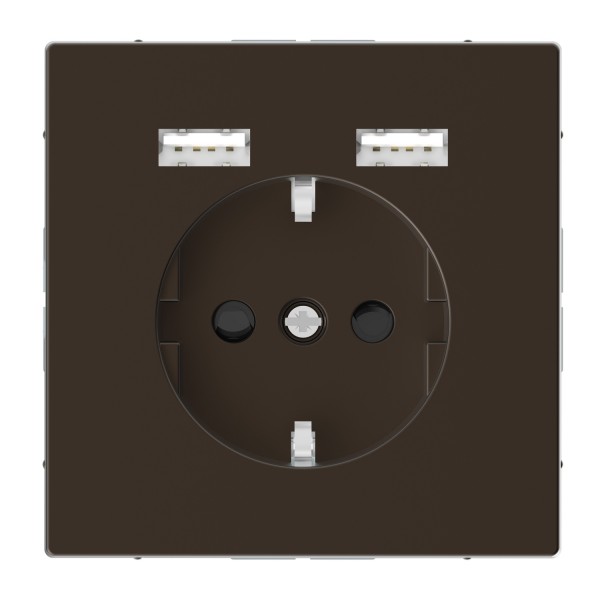

Merten - USB charger + schuko socket-outlet - 2.4A 16A

Details

Main
range	Merten
product or component type	USB charger + socket-outlet
integrated connection type	1 socket-outlet 250 V AC 16 A 50/60 Hz 2 USB port 5 V DC 2.4 A
input power	12 W

Complementary
device mounting	Flush
device presentation	Complete product
mounting support	CEE60 installation box 1 module)
range compatibility	Merten System Design standard flush mounting box D-Life
outlet poles configuration	2P + E with shutter
outlet standard description	Side earth
outlet standard	Schuko
ground lug position	Straight 0° position
number of modules	1 module
fixing mode	By screws and claws
colour tint	Mocca
surface finish	Metallic
surface treatment	Painted mechanism cover
type of packing	Box
quantity per set	1
sale per indivisible quantity	1
ambient air temperature for storage	-20…60 °C
protection type	Against short-circuits Thermal protection Automatic overload protection Battery charge protection 1 external fuse Automatic restart after ground fault or main power loss
ambient air temperature for operation	-5…35 °C
service life in cycles	30000 cycles
connections - terminals	Screwless terminals
number of terminals	3
number of cables	2
clamping connection capacity	1.5...2.5 mm² rigid 1.5...2.5 mm² stranded
material	PC (polycarbonate) centre plate PC (polycarbonate) casing
wire stripping length	11 mm
height	71 mm
width	71 mm
depth	44 mm
embedding depth	32 mm
net weight	0,092 kg
standards	IEC 60884-1 EN/IEC 60950 NEN-EN 50198-2 DIN VDE 0620-1

Environment
product certifications	NEMKO KEMA-KEUR FIMKO SEMKO CB VDE
IK degree of protection	IK04
IP degree of protection	IP20
environmental characteristic	RoHS compliant Halogen free Without silicone Normal environment Indoor use
environmental health and issues	Lead free Halogen free

Offer Sustainability
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
