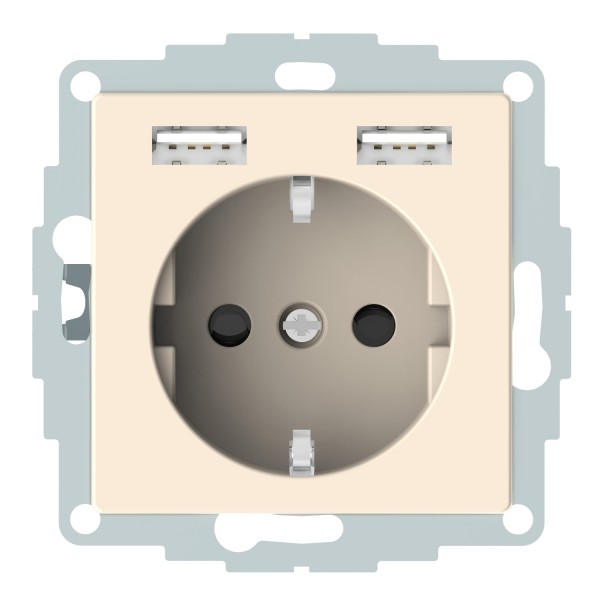

Merten - USB charger + schuko socket-outlet - 2.4A 16A

Details

Main
range	Merten
product or component type	USB charger + socket-outlet
integrated connection type	1 socket-outlet 250 V AC 16 A 50/60 Hz 2 USB port 5 V DC 2.4 A
input power	12 W

Complementary
device mounting	Flush
device presentation	Complete product
mounting support	CEE60 installation box 1 module)
range compatibility	Merten System M standard flush mounting box
outlet poles configuration	2P + E with shutter
outlet standard description	Side earth
outlet standard	Schuko
ground lug position	Straight 0° position
number of modules	1 module
fixing mode	By screws and claws
colour tint	White RAL 1013)
surface finish	Brilliant
surface treatment	Untreated mechanism cover
type of packing	Box
quantity per set	1
sale per indivisible quantity	1
ambient air temperature for storage	-20…60 °C
protection type	Against short-circuits Battery charge protection Automatic overload protection 1 external fuse Thermal protection Automatic restart after ground fault or main power loss
ambient air temperature for operation	-5…35 °C
service life in cycles	30000 cycles
connections - terminals	Screwless terminals
number of terminals	3
number of cables	2
clamping connection capacity	1.5...2.5 mm² rigid 1.5...2.5 mm² stranded
material	PC (polycarbonate) centre plate PC (polycarbonate) casing
wire stripping length	11 mm
height	71 mm
width	71 mm
depth	44 mm
embedding depth	32 mm
net weight	0,092 kg
standards	DIN VDE 0620-1 NEN-EN 50198-2 EN/IEC 60950 IEC 60884-1

Environment
product certifications	VDE FIMKO NEMKO SEMKO CB KEMA-KEUR
IK degree of protection	IK04
IP degree of protection	IP20
environmental characteristic	Without silicone Normal environment RoHS compliant Indoor use Halogen free
environmental health and issues	Lead free Halogen free

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
