Details
Characteristics
| range | Spacial | |
|---|---|---|

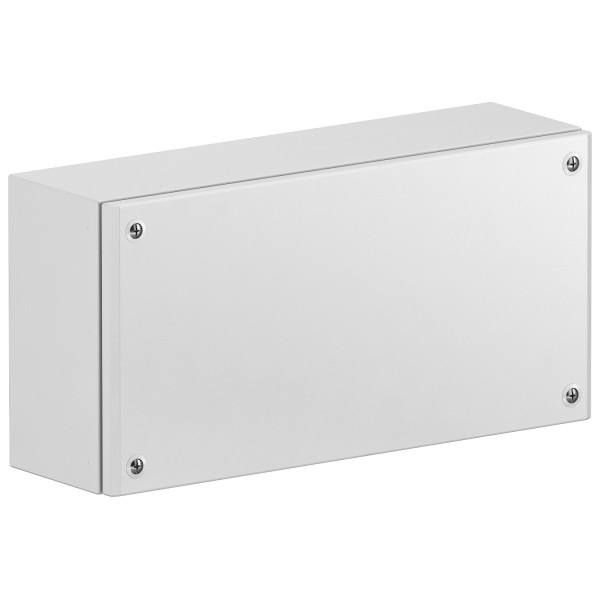

| product name | Spacial SBM | |
| device application | Multi-purpose | |
| Category | Industrial box | |
| device short name | SBM | |
| enclosure type | Flat face box | |
| enclosure nominal height | 200 mm | |
| enclosure nominal width | 400 mm | |
| enclosure nominal depth | 80 mm | |
| enclosure mounting | Wall mounted | |
| device composition | 4 cover screw1 cover1 body | |
| body type | Single piece body folded and welded | |
| type of front cover | Plain door | |
| cover fixing | Half turn metal screw | |
| lock type | Captive screw PZ2 outside sealed area | |
| removable parts | Cover by captive screws |
| material | Sheet steel | |
|---|---|---|
| surface finish | Polyester powder | |
| colour | Grey (RAL 7035) | |
| standards | IEC 62208 | |
| product certifications | GLLRBVULDNV | |
| IP degree of protection | IP66 conforming to IEC 60529 | |
| IK degree of protection | IK10 conforming to IEC 62262 | |
| ambient air temperature for storage | -35…60 °C | |
| Operating temperature | -35…80 °C | |
| net weight | 2.658 kg |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
