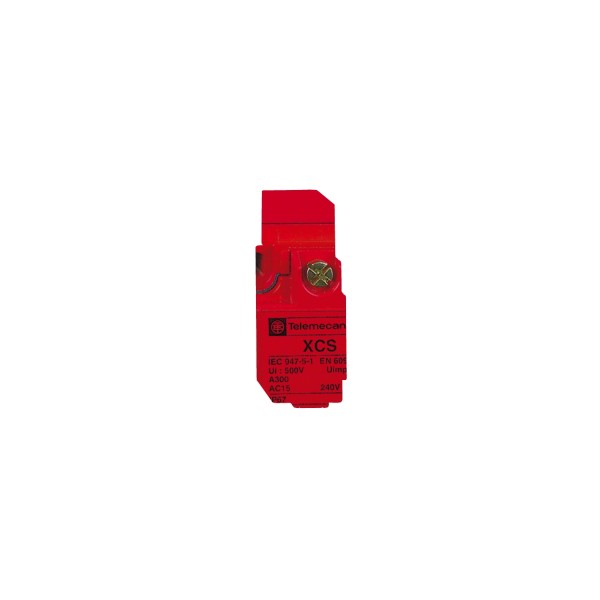

metal safety switch XCSA - 2 NC + 1 NO - slow break - 1 entry tapped Pg 13

Ülevaaded: 0

Tootekood: XCSA701

Quick Overview

Saadavus: Tellimisel

62,51 € (ilma KM-ta)

Details

Main
range of product
Preventa Safety detection
product or component type
Safety switch
component name
XCSA
design
Industrial
material
Metal
head type
Key operated turret head
contacts type and composition
2 NC + 1 NO
contact operation
Slow-break, break before make
cable entry
1 entry tapped Pg 13.5
cable outer diameter
9…12 mm
electrical connection
Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
number of poles
3
locking options description
Without locking of actuator
local signalling
without
Complementary
positive opening
With NC contact
mechanical durability
1000000 cycles
minimum actuation speed
0,01 m/s
maximum actuation speed
0,5 m/s
[Ie] rated operational current
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1
0,55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1
0,27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
300 VUL 508
500 VEN/IEC 60947-1
300 VCSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-5-1
short-circuit protection
10 A cartridge fuse gG (gl)
minimum actuator force for extraction
20 N
maximum operating rate
10 cyc/mn for maximum durability
safety level
Can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
safety reliability data
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
body material
Zamak
head material
Zamak
depth
44 mm
height
114 mm
width
40 mm
net weight
0,44 kg
Environment
standards
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/ISO 12100
EN 1088/ISO 14119
UL 508
EN/IEC 60204-1
product certifications
CSA
UL
protective treatment
TC
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6
shock resistance
10 gn 11 ms IEC 60068-2-27
electrical shock protection class
Class I EN/IEC 61140
IP degree of protection
IP67 EN/IEC 60529 and EN/IEC 60947-5-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
