Details
Characteristics

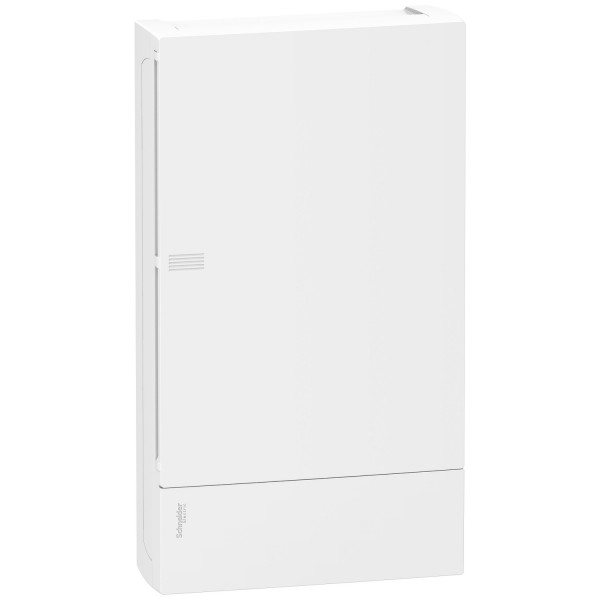

| range | Mini Pragma | |
|---|---|---|
| product or component type | Enclosure | |
| enclosure type | Modular enclosure | |
| Nb of 18 mm modules per row | 12 | |
| Nb of horizontal rows | 3 | |
| Type of door | Plain | |
| width | 268 mm outside: | |
| height | 478 mm outside: | |
| depth | 102 mm outside: | |
| Built-in depth | 0 mm |
| enclosure mounting | Surface | |
|---|---|---|
| 9 mm pitches | 24 | |
| total number of 18 mm modules | 36 | |
| [In] rated current | 63 A | |
| type of rail | 35 mm asymmetrical rail | |
| mounting plate description | Without mounting plate | |
| cable entry | 1 trunking flange1 bare flange | |
| terminal block function | Without | |
| enclosure material | Back part: technoplasticDoor: technoplasticFront face: technoplastic | |
| internal depth | 80 mm | |
| colour | Door: white (RAL 9003)Front face: white (RAL 9003) |
| standards | IEC 60695-2-11IEC 529EN 50102IEC 60670-24IEC 60439-3 | |
|---|---|---|
| quality labels | IMQ | |
| fire resistance | Door: 650 °CBack part: 650 °CFront face: 650 °C | |
| IP degree of protection | IP40 | |
| IK degree of protection | IK07 | |
| ambient air temperature for operation | -25…60 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
