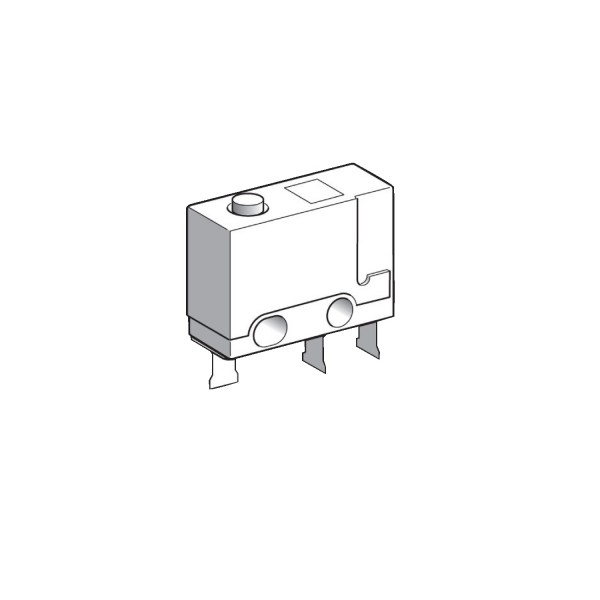

miniature limit switch - flat plunger - solder tags

Ülevaaded: 0

Tootekood: XEP5P1W2

Quick Overview

Saadavus: Ei saa enam tellida

54,17 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Special format
product or component type
Microswitch
device short name
XEP5
detector design
Sub-subminiature, DIN 41635 D format
head type
Plunger head
movement of operating head
Linear
type of operator
Plunger
switch actuation
On end
type of approach
Vertical approach
electrical connection
Solder tags
contacts type and composition
1 C/O standard
contact operation
Snap action
contacts material
Ag
Complementary
body material
Diallyl-phtalate
tags material
Gold plated brass
maximum force for tripping
2 N
minimum release force
0.4 N
maximum permissible end of travel force
10 N
tripping point
8.4 mm
maximum differential travel
0.06 mm
minimum over travel
0.1 mm
inter contact distance
0.3 mm
contact code designation
D300, AC-15 (Ue = 240 V, Ie = 0.3 A) conforming to EN/IEC 60947-5-1 appendix A
[Ith] conventional free air thermal current
8.5 A at 250 V 50/60 Hz
mechanical durability
100000 cycles
width
5 mm
height
10 mm
depth
13 mm
net weight
1.4 g
terminals description ISO n°1
(1-2-4)OC
Environment
IP degree of protection
IP40
ambient air temperature for operation
-40…125 °C
marking
CE
standards
EN 60947-5-1
EN 61058
UL 1054
IEC 60947-5-1
CURus
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
