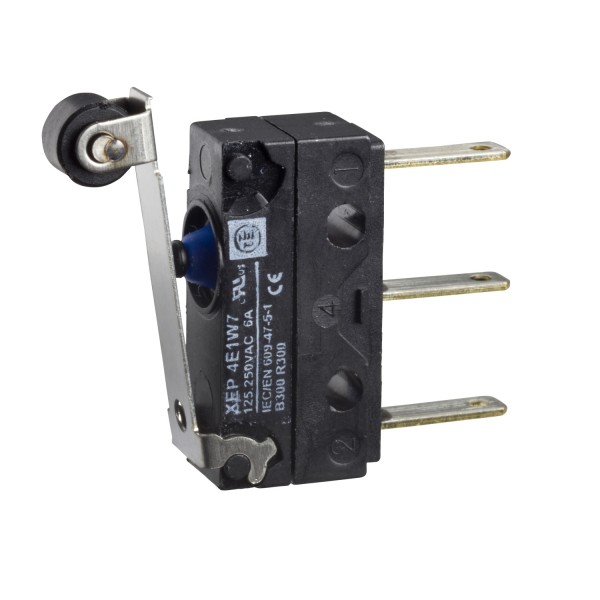

miniature limit switch - roller lever - 2.8 mm cable clip tags

Ülevaaded: 0

Tootekood: XEP4E1W7A454

Quick Overview

Saadavus: Tellimisel

6,24 € (ilma KM-ta)

Details

Main
range of product
OsiSense XC
series name
Special format
product or component type
Microswitch
device short name
XEP4
detector design
Subminiature, DIN 41635 B format, sealed
head type
Plunger head
lever material
Stainless steel
Glass reinforced polyamide roller
lever fixing position
A
movement of operating head
Linear
type of operator
Roller lever
type of approach
Lateral approach
electrical connection
2.8 mm cable clip tags
contacts type and composition
1 C/O standard
contact operation
Snap action
contacts material
AgCdO
Complementary
body material
Polyester
tags material
Tinned brass
maximum force for tripping
0,83 N lever fixing position in A
1,67 N lever fixing position in B
minimum release force
0,27 N lever fixing position in A
0,53 N lever fixing position in B
maximum permissible end of travel force
3,33 N lever fixing position in A
6,67 N lever fixing position in B
tripping point
14,5 mm lever fixing position in B
15,5 mm lever fixing position in A
maximum differential travel
0,2 mm lever fixing position in B
0,39 mm lever fixing position in A
minimum over travel
0,9 mm lever fixing position in B
1,8 mm lever fixing position in A
inter contact distance
0,4 mm
contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1,5 A)EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V, Ie = 0,1 A)EN/IEC 60947-5-1 appendix A
[Ith] conventional free air thermal current
7,5 A 250 V 50/60 Hz
mechanical durability
2000000 cycles
width
7 mm
height
10 mm
depth
20 mm
net weight
3,2 g
terminals description ISO n°1
(1-2-4)OC
Environment
IP degree of protection
IP67
ambient air temperature for operation
-40…125 °C
marking
CE
standards
CURus
EN 60947-5-1
UL 1054
EN 61058
IEC 60947-5-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
