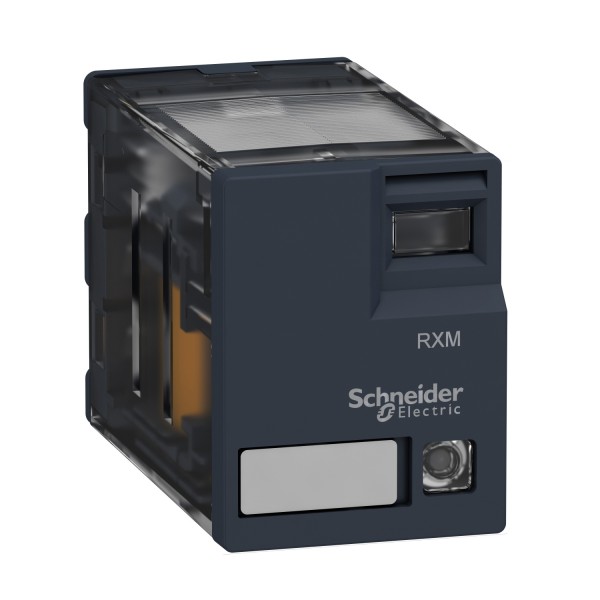

Miniature Plug-in relay - Zelio RXM 4 C/O 12 V DC 3 A with LED

Details

Main
range of product	Zelio Relay
series name	Miniature
product or component type	Plug-in relay
device short name	RXM
contacts type and composition	4 C/O
[Uc] control circuit voltage	12 V DC
[Ithe] conventional enclosed thermal current	3 A at -40…55 °C
status LED	With
control type	Without lockable test button
utilisation coefficient	20 %

Complementary
shape of pin	Flat
[Ui] rated insulation voltage	250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL
[Uimp] rated impulse withstand voltage	2.5 kV during 1.2/50 µs
contacts material	Gold plated bifurcated silver
[Ie] rated operational current	2 A at 28 V (DC) NO conforming to IEC 2 A at 250 V (AC) NO conforming to IEC 1 A at 28 V (DC) NC conforming to IEC 1 A at 250 V (AC) NC conforming to IEC 3 A at 28 V (DC) conforming to UL 3 A at 277 V (AC) conforming to UL
maximum switching voltage	250 V conforming to IEC
resistive rated load	3 A at 250 V AC 3 A at 28 V DC
maximum switching capacity	750 VA/84 W
minimum switching capacity	15 mW at 3 mA, 5 V
operating rate	<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
mechanical durability	10000000 cycles
electrical durability	100000 cycles for resistive load depending on mounting position and working environment
average coil consumption in W	0.9 W
drop-out voltage threshold	>= 0.1 Uc
operate time	20 ms
release time	20 ms
average coil resistance	160 Ohm at 20 °C +/- 10 %
rated operational voltage limits	9.6...13.2 V DC
protection category	RT I
operating position	Any position
net weight	0.037 kg
device presentation	Complete product

Environment
dielectric strength	1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic
product certifications	CSA REACH Lloyd's RoHS GOST CE UL
standards	UL 508 EN/IEC 61810-1 CSA C22.2 No 14
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
IP degree of protection	IP40 conforming to EN/IEC 60529
shock resistance	10 gn for in operation 30 gn for not operating
pollution degree	2

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
