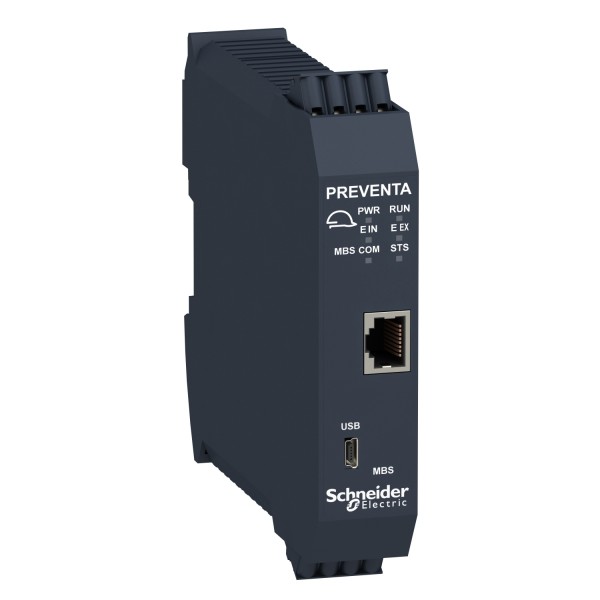

Modbus SL diagnostic expansion module with spring term

Ülevaaded: 0

Tootekood: XPSMCMCO0000MBG

Quick Overview

Saadavus: Tellimisel

754,99 € (ilma KM-ta)

Details

Main
range of product
Preventa Safety automation
product or component type
Non-safe communication module
device short name
XPSMCM
[Us] rated supply voltage
24 V - 20...20 % DC
Complementary
power dissipation in W
3 W
quality labels
CE
range compatibility
Preventa XPSMCM
connector type
RJ45
number of port
1
method of access
Slave
transmission rate
1.2 kbit/s
2.4 kbit/s
4.8 kbit/s
9.6 kbit/s
19.2 kbit/s
38.4 kbit/s
communication port protocol
Modbus serial
current consumption
0.125 mA
maximum cable distance between devices
1000 m
local signalling
LED green with ON marking for power ON
LED green with RUN marking for operating
LED red with E IN marking for internal error
LED red with E EX marking for external error
LED green/red with NET marking for connection state
LED green/red with STS marking for communication status
number of terminals
2
connections - terminals
1 spring clamp terminals, removable terminal block
2 spring clamp terminals, removable terminal block
cable cross section
0.2…2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end
0.25…2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel
0.25…2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel
0.2…2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end
0.5…1 mm² - AWG 20...AWG 18 flexible cablewith cable end, with double bezel
mounting support
Omega 35 mm DIN rail conforming to EN 50022
width
22.5 mm
height
99 mm
depth
114.5 mm
net weight
0.3 kg
Environment
product certifications
TÜV
CULus
RCM
IP degree of protection
IP20
ambient air temperature for operation
-10…55 °C
ambient air temperature for storage
-20…85 °C
relative humidity
10…95 %
pollution degree
2
insulation
250 V AC between power supply and housing conforming to EN/IEC 61800-5-1
overvoltage category
II
electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2
Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3
Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
vibration resistance
+/-0.35 mm (f= 10…55 Hz) conforming to EN/IEC 61496-1
shock resistance
10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to EN/IEC 61496-1
operating altitude
2000 m
service life
20 year(s)
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
