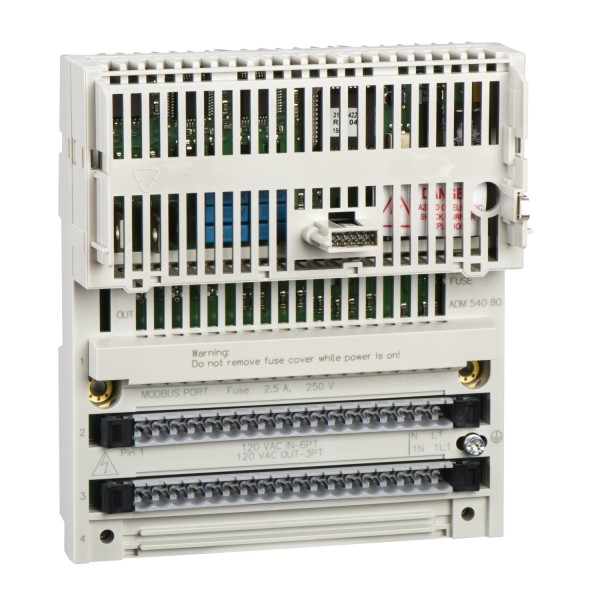

Modicon Momentum - Modbus I/O module base

Details

Main
range of product	Modicon Momentum automation platform
product or component type	Modbus I/O module base
group of channels	1 group of 6 discrete inputs 1 group of 3 discrete outputs
discrete input number	6
discrete output number	3
number of port	1
communication port protocol	Modbus
wiring mode	2 or 4 wires

Complementary
discrete input logic	Positive
discrete input voltage	120 V AC 47...63 Hz 0...132 V AC
input overvoltage protection	200 V
voltage state 1 guaranteed	>= 79 V
voltage state 0 guaranteed	<= 20 V
current state 1 guaranteed	>= 5.5 mA
current state 0 guaranteed	<= 1.9 mA
discrete output logic	Positive
discrete output voltage	120 V 47...63 Hz
discrete output current	0.5 mA per point 1.5 mA per module
maximum voltage drop	<1,5 V 0,5 A at state on
maximum leakage current	1,9 mA AC 120 V
surge current	30 mA
response time	< 12.3 ms 60 Hz from state 1 to state 0 input circuit < 12.3 ms 60 Hz from state 1 to state 0 output circuit < 12.5 ms 60 Hz from state 0 to state 1 input circuit < 12.5 ms 60 Hz from state 0 to state 1 output circuit
communication port support	RS485
transmission rate	9600 bit/s 19200 bit/s
data format	8-bit RTU 7-bit ASCII
number of addresses	0…247
port timeout	150 ms
marking	CE
electrical connection	2 connectors for removable terminal blocks
current consumption	125 mA 120 V
net weight	0,24 kg

Environment
product certifications	CSA UL
protective treatment	TC
resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
resistance to electromagnetic fields	10 V/m 80...1000 MHz IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
