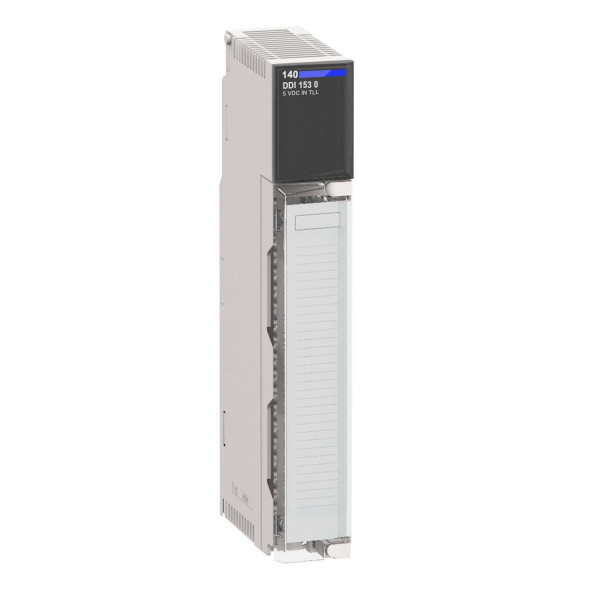

Modicon Quantum low voltage discrete input module - 32 I

Details

Main
range of product	Modicon Quantum automation platform
product or component type	Low voltage dc discrete input modules
discrete input number	32

Complementary
group of channels	4
logic input	Negative (source)
discrete input voltage	5 V TTL DC
input voltage limits	4.5...5.5 V
voltage state 1 guaranteed	0.8 V DC
voltage state 0 guaranteed	>= 4 V DC at 5.5 V supply voltage
current state 1 guaranteed	4 mA
addressing requirement	2 input words
input impedance	7500 Ohm
maximum leakage current	200 mA at Us = 5.5 V and Uin = 4 V
absolute maximum input	15 V during 1.3 ms decaying pulse 5.5 V continuous
response time	<= 250 µs from state 0 to state 1 <= 500 µs from state 1 to state 0
protection type	Input protection
power dissipation	5 W
isolation between group and bus	1780 Vrms for 1 minute
isolation between group	500 Vrms for 1 minute
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault detected (F): 32 LEDs (green)input status:
marking	CE
bus current requirement	170 mA
module format	Standard
net weight	0.45 kg

Environment
protective treatment	Conformal coating Humiseal 1A33
standards	UL 508 CSA C22.2 No 142
product certifications	GOST FM Class 1 Division 2 CUL
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
