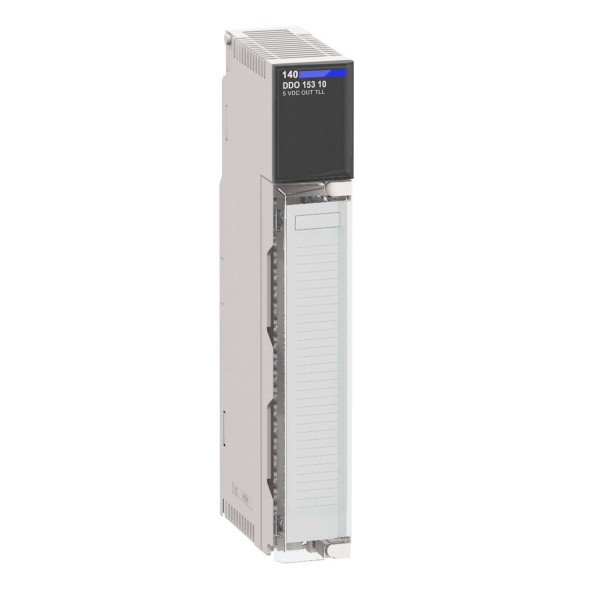

Modicon Quantum TTL discrete output module - 32 O - positive logic

Details

Main
range of product	Modicon Quantum automation platform
product or component type	TTL discrete output module
discrete output number	32

Complementary
group of channels	4 groups of 8 channels
discrete output type	TTL Positive (sink)
addressing requirement	2 output words
discrete output voltage	5 V DC
voltage state 1 guaranteed	<= 0.2 V
[Us] rated supply voltage	4...5.5 V DC
absolute maximum output	15 V for 0.0013 s decaying voltage pulse DC
internal pullup resistor	440 Ohm
maximum load current	<= 2.4 A per module <= 600 mA each group <= 75 mA each point
surge current	750 A during 0.5 ms between each point
response time	<= 250 µs at state 0 to state 1 resistive <= 250 µs at state 1 to state 0 resistive
protection type	Output protection by transient voltage suppression Internal by fuse
fault indication	Blown fuse Loss of field power
power dissipation	4 W
maximum supply current	0.4 A
isolation between group	500 Vrms for 1 minute
marking	CE
local signalling	1 LED (green)bus communication is present (Active): 1 LED (red)external fault detected (F): 32 LEDs (green)input status:
bus current requirement	350 mA
current consumption	2800 mA at 5 V DC
module format	Standard
net weight	0.45 kg

Environment
protective treatment	Conformal coating Humiseal 1A33
product certifications	FM Class 1 Division 2 C-Tick RMRS GOST
standards	CSA C22.2 No 142 UL 508
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Contractual warranty
Warranty	18 months
